Description
Brand - ZEN
Item Number - NATV50-PP ZEN
Category - Yoke Type Track Rollers (NATR and NATV)

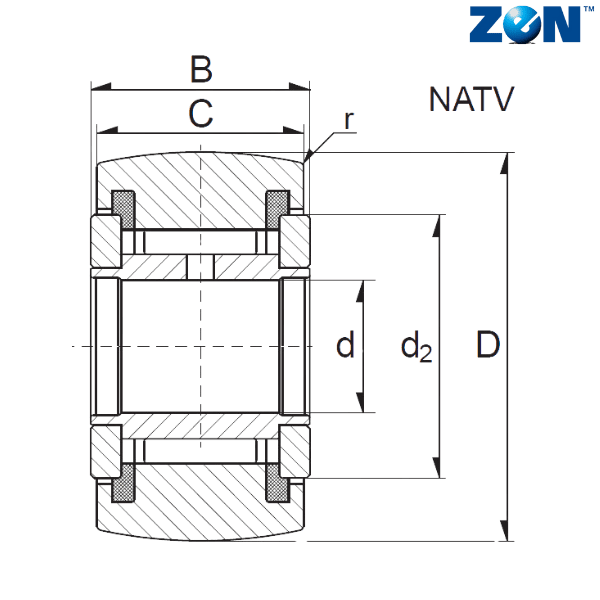

Inner Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (B) mm - 32
C (mm) - 30
d2 (mm) - 76
r (mm) - 1.1
Weight (kg) - 0.969
Dynamic Load Rating (N) - 40000
Static Load Rating (N) - 92000
Limiting Speed - 550
Fatigue Limit Load - 11600
Radial Play - 0.012-0.036
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
