Description
Brand - ZEN
Item Number - NATV30-PP ZEN
Category - Yoke Type Track Rollers (NATR and NATV)

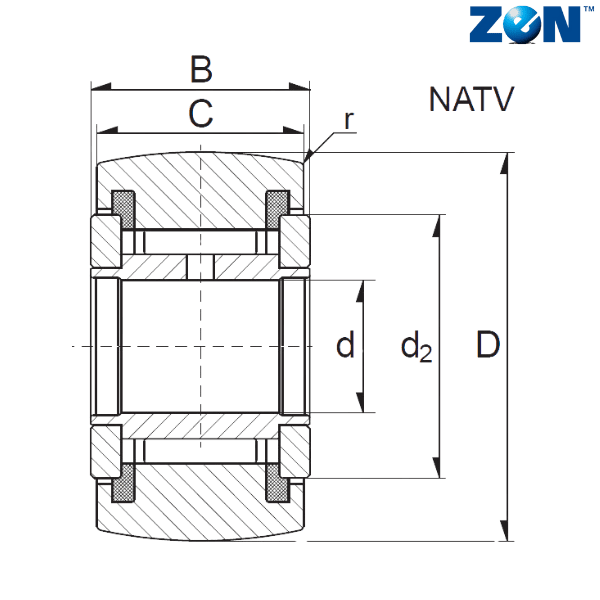

Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (B) mm - 29
C (mm) - 28
d2 (mm) - 51
r (mm) - 1
Weight (kg) - 0.468
Dynamic Load Rating (N) - 30500
Static Load Rating (N) - 62000
Limiting Speed - 850
Fatigue Limit Load - 7800
Radial Play - 0.008-0.028
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
