Description
Brand - ZEN
Item Number - NATV20-PP ZEN

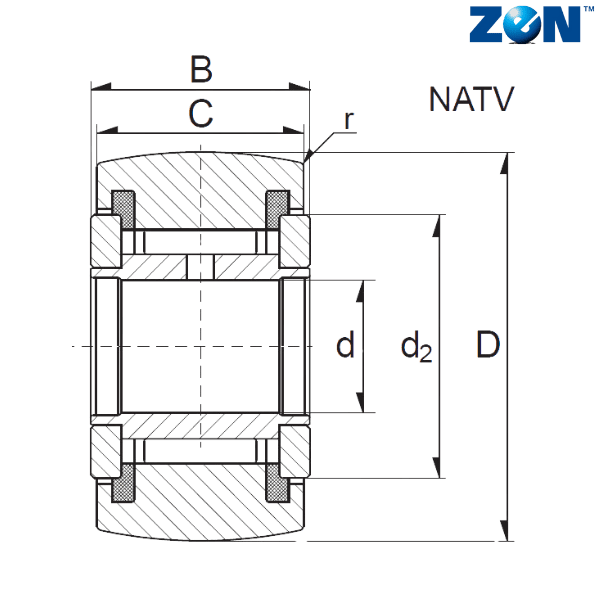

Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (B) mm - 25
C (mm) - 24
d2 (mm) - 36.5
r (mm) - 1
Weight (kg) - 0.245
Dynamic Load Rating (N) - 20600
Static Load Rating (N) - 42000
Limiting Speed - 1300
Fatigue Limit Load - 5200
Radial Play - 0.006-0.023
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
