Description
Brand - ZEN
Item Number - NATV17 ZEN
Category - Yoke Type Track Rollers (NATR and NATV)

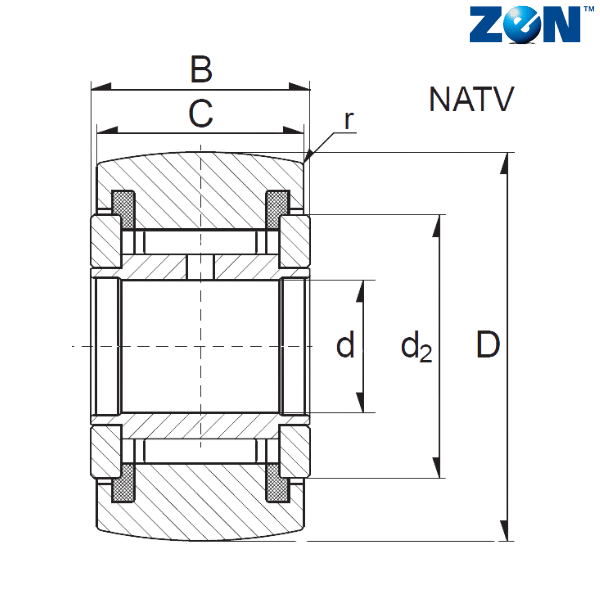

Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 21
C (mm) - 20
d2 (mm) - 31.5
r (mm) - 1
Weight (kg) - 0.152
Dynamic Load Rating (N) - 14800
Static Load Rating (N) - 26500
Limiting Speed - 1400
Fatigue Limit Load - 3050
Radial Play - 0.006-0.020
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
