Description
Brand - ZEN
Item Number - NATV12-PP ZEN

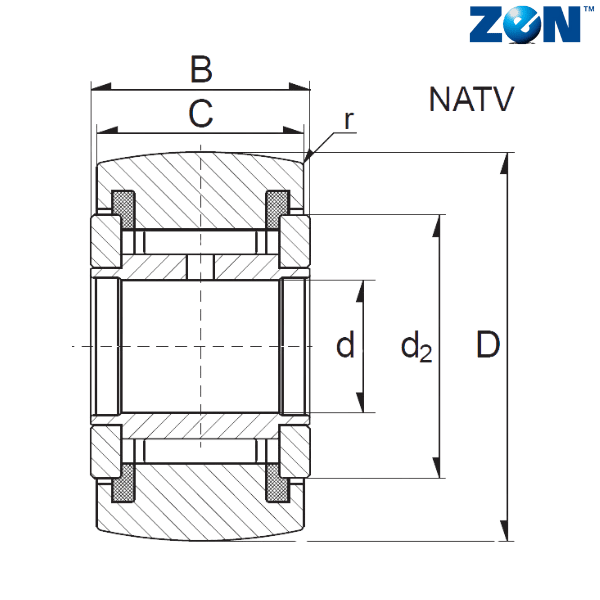

Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 32
Width (B) mm - 15
C (mm) - 14
d2 (mm) - 25
r (mm) - 0.6
Weight (kg) - 0.069
Dynamic Load Rating (N) - 9700
Static Load Rating (N) - 15400
Limiting Speed - 1800
Fatigue Limit Load - 1950
Radial Play - 0.006-0.020
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
