Description
Brand - ZEN
Item Number - NATR50-PPX ZEN

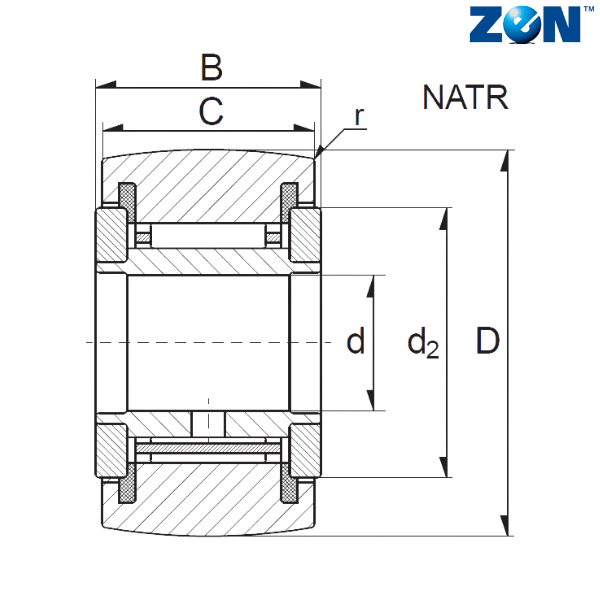

Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (B) mm - 32
C (mm) - 30
d2 (mm) - 76
r (mm) - 1.1
Weight (kg) - 0.867
Dynamic Load Rating (N) - 31500
Static Load Rating (N) - 59000
Limiting Speed - 650
Fatigue Limit Load - 7100
Radial Play - 0.012-0.036
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
