Description
Brand - ZEN
Item Number - NATR5 ZEN
Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 5
Outer Diameter (D) mm - 16
Width (B) mm - 12
C (mm) - 11
d2 (mm) - 12.5
r (mm) - 0.15
Weight (kg) - 0.014
Dynamic Load Rating (N) - 3150
Static Load Rating (N) - 3300
Limiting Speed - 14000
Fatigue Limit Load - 415
Radial Play - 0.003-0.018
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200

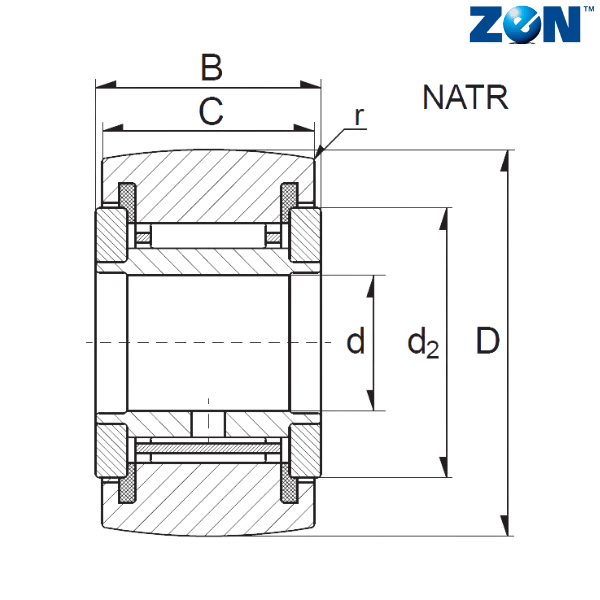

** Images are for representation purposes only
