Description
Brand - ZEN
Item Number - NATR40-PPX ZEN

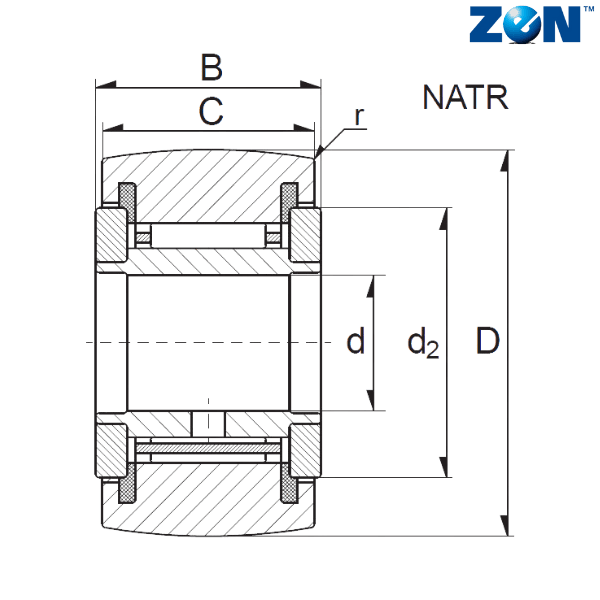

Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 80
Width (B) mm - 32
C (mm) - 30
d2 (mm) - 66
r (mm) - 1.1
Weight (kg) - 0.795
Dynamic Load Rating (N) - 32500
Static Load Rating (N) - 58000
Limiting Speed - 850
Fatigue Limit Load - 7000
Radial Play - 0.010-0.030
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
