Description
Brand - ZEN
Item Number - NATR25 ZEN

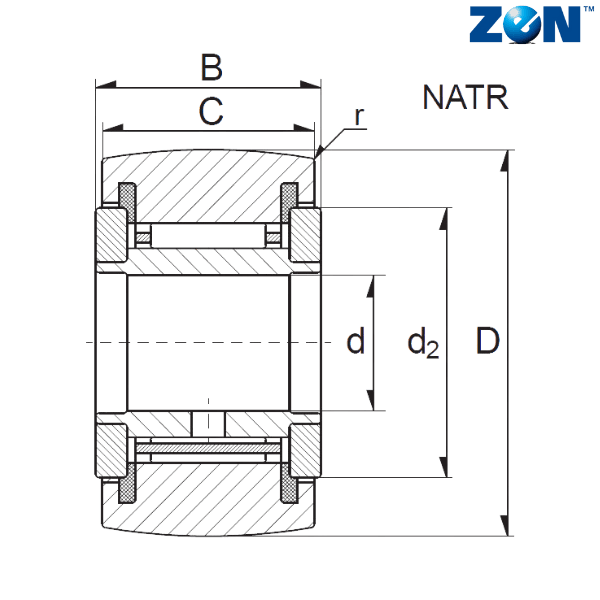

Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 52
Width (B) mm - 25
C (mm) - 24
d2 (mm) - 41.5
r (mm) - 1
Weight (kg) - 0.275
Dynamic Load Rating (N) - 15400
Static Load Rating (N) - 26500
Limiting Speed - 1800
Fatigue Limit Load - 3010
Radial Play - 0.008-0.028
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
