Description
Brand - ZEN
Item Number - NATR20-PPX ZEN
Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (B) mm - 25
C (mm) - 24
d2 (mm) - 36.5
r (mm) - 1
Weight (kg) - 0.236
Dynamic Load Rating (N) - 15500
Static Load Rating (N) - 25500
Limiting Speed - 2400
Fatigue Limit Load - 3000
Radial Play - 0.006-0.023
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200

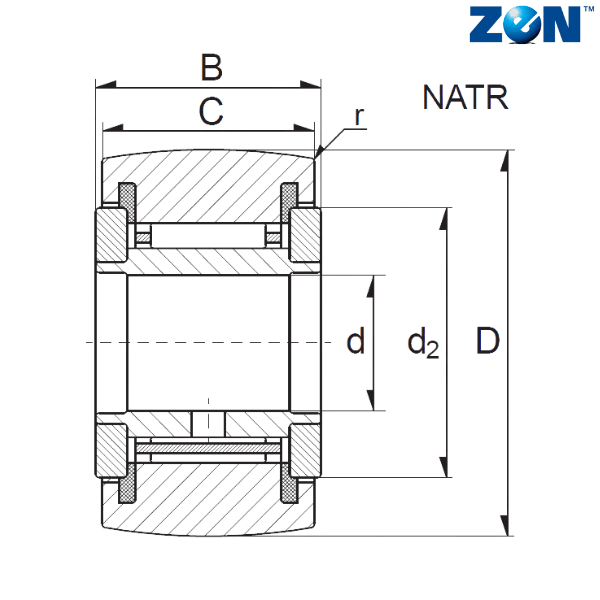

** Images are for representation purposes only
