Description
Brand - ZEN
Item Number - NATR15-PP ZEN

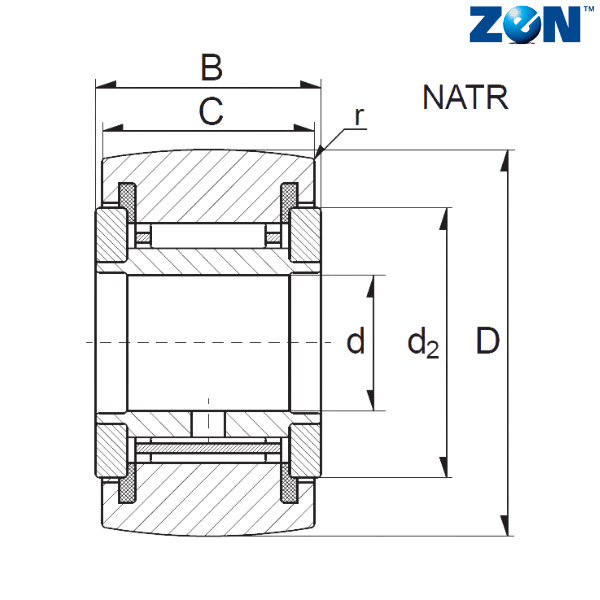

Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 15
Outer Diameter (D) mm - 35
Width (B) mm - 19
C (mm) - 18
d2 (mm) - 27.6
r (mm) - 0.6
Weight (kg) - 0.095
Dynamic Load Rating (N) - 9800
Static Load Rating (N) - 14100
Limiting Speed - 3600
Fatigue Limit Load - 1700
Radial Play - 0.006-0.020
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
