Description
Brand - ZEN
Item Number - NATR12 ZEN
Category - Yoke Type Track Rollers (NATR and NATV)

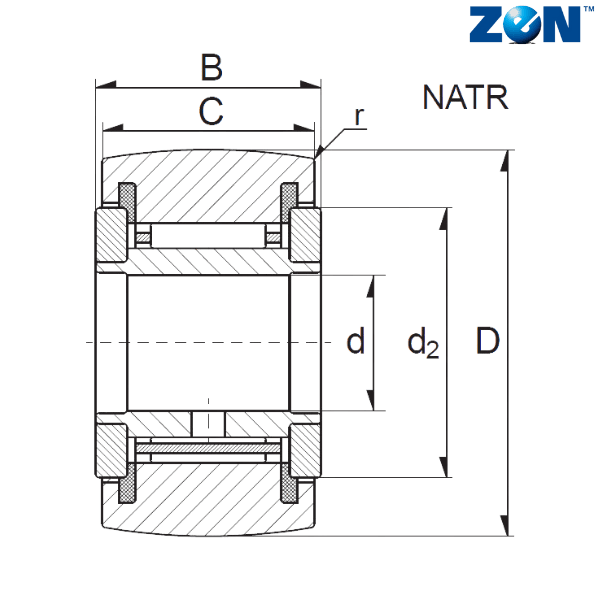

Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 32
Width (B) mm - 15
C (mm) - 14
d2 (mm) - 25
r (mm) - 0.6
Weight (kg) - 0.071
Dynamic Load Rating (N) - 6900
Static Load Rating (N) - 8800
Limiting Speed - 4500
Fatigue Limit Load - 1720
Radial Play - 0.006-0.020
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
