Description
Brand - ZEN
Item Number - NATR10 ZEN

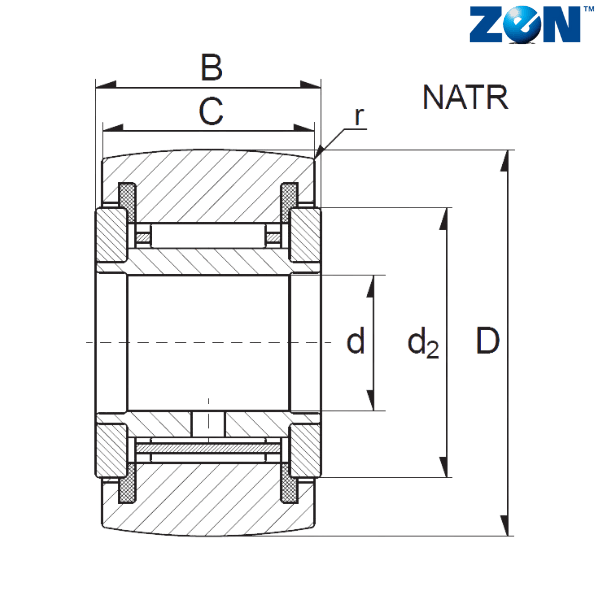

Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 10
Outer Diameter (D) mm - 30
Width (B) mm - 15
C (mm) - 14
d2 (mm) - 23
r (mm) - 0.6
Weight (kg) - 0.064
Dynamic Load Rating (N) - 6800
Static Load Rating (N) - 8400
Limiting Speed - 5500
Fatigue Limit Load - 1070
Radial Play - 0.005-0.020
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
