NATB 5912 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - NATB 5912 IKO
Also Known As - NATB5912
Category - Needle Roller Bearings with Three-Point Contact Ball Bearing
Shaft Diameter (mm) - 60
Bore Diameter (d) mm - 60
Outer Diameter (D) mm - 85
Boundary Dimension (C) mm - 34
Boundary Dimension (B) mm - 38
Minimum Boundary Dimension (rs) mm - 1
Boundary Dimension (Fw) mm - 68

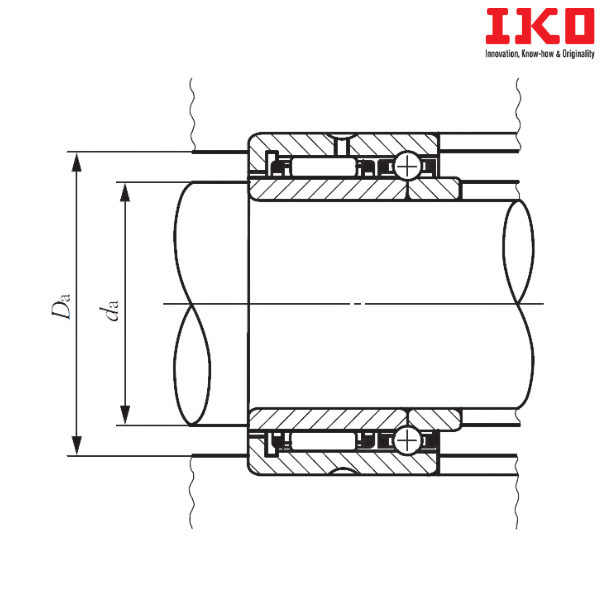

Minimum Standard Mounting Dimension (da) mm - 65
Maximum Standard Mounting Dimension (Da) mm - 80
Basic Radial dynamic load rating (C) N - 41800
Basic Axial dynamic load rating (C) N - 10700
Basic Radial Static load rating (C0) N - 82200
Basic Axial Static load rating (C0) N - 26700
Allowable Rotational Speed (min-1) - 6000
Weight (kg) - 0.66
Needle Roller Bearings with Angular Contact Ball Bearing - NATA 5912

** Images are for representation purposes only
