Description
Brand - IKO
Item Number - NATB 5910 IKO
Also Known As - NATB5910
Category - Needle Roller Bearings with Three-Point Contact Ball Bearing
Shaft Diameter (mm) - 50
Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 72
Boundary Dimension (C) mm - 30
Boundary Dimension (B) mm - 34
Minimum Boundary Dimension (rs) mm - 0.6
Boundary Dimension (Fw) mm - 58

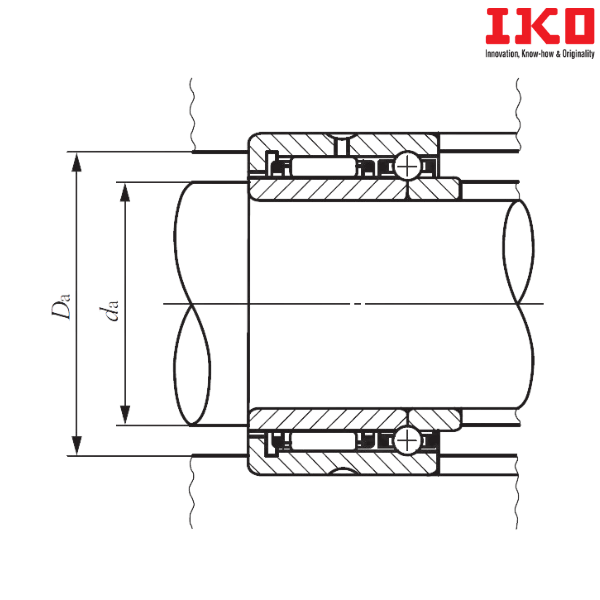

Minimum Standard Mounting Dimension (da) mm - 54
Maximum Standard Mounting Dimension (Da) mm - 68
Basic Radial dynamic load rating (C) N - 33600
Basic Axial dynamic load rating (C) N - 5660
Basic Radial Static load rating (C0) N - 72500
Basic Axial Static load rating (C0) N - 13600
Allowable Rotational Speed (min-1) - 7000
Weight (kg) - 0.445
Needle Roller Bearings with Angular Contact Ball Bearing - NATA 5910
** Images are for representation purposes only
