NATB 5907 IKO

Brand - IKO
Item Number - NATB 5907 IKO
Also Known As - NATB5907
Category - Needle Roller Bearings with Three-Point Contact Ball Bearing
Shaft Diameter (mm) - 35
Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 55
Boundary Dimension (C) mm - 27
Boundary Dimension (B) mm - 30
Minimum Boundary Dimension (rs) mm - 0.6
Boundary Dimension (Fw) mm - 42

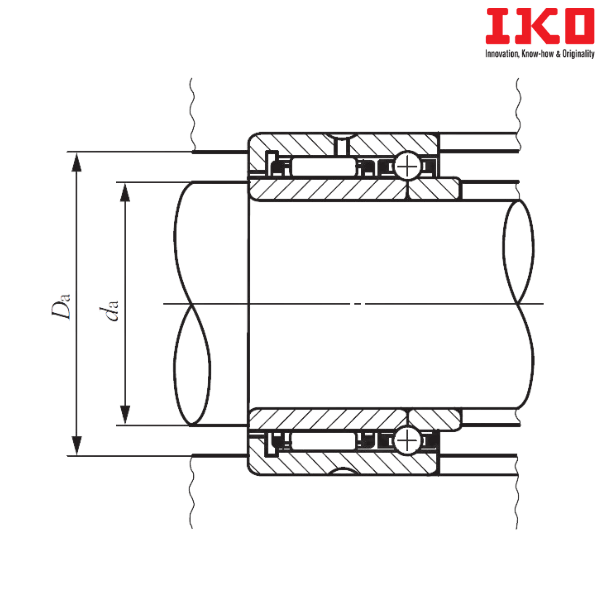

Minimum Standard Mounting Dimension (da) mm - 39
Maximum Standard Mounting Dimension (Da) mm - 51
Basic Radial dynamic load rating (C) N - 24000
Basic Axial dynamic load rating (C) N - 4890
Basic Radial Static load rating (C0) N - 42100
Basic Axial Static load rating (C0) N - 9870
Allowable Rotational Speed (min-1) - 9500
Weight (kg) - 0.26
Needle Roller Bearings with Angular Contact Ball Bearing - NATA 5907

** Images are for representation purposes only
