NATA 5909 IKO

Brand - IKO
Item Number - NATA 5909 IKO
Also Known As - NATA5909
Category - Needle Roller Bearings with Angular Contact Ball Bearing
Shaft Diameter (mm) - 45
Bore Diameter (d) mm - 45
Outer Diameter (D) mm - 68
Boundary Dimension (C) mm - 30
Boundary Dimension (B) mm - 34
Minimum Boundary Dimension (rs) mm - 0.6
Boundary Dimension (Fw) mm - 55
Minimum Standard Mounting Dimension (da) mm - 49
Maximum Standard Mounting Dimension (Da) mm - 64
Basic Radial dynamic load rating (C) N - 32600
Basic Axial dynamic load rating (C) N - 5450
Basic Radial Static load rating (C0) N - 68500
Basic Axial Static load rating (C0) N - 12700
Allowable Rotational Speed (min-1) - 7000
Weight (kg) - 0.41
Needle Roller Bearings with Three-Point Contact Ball Bearing - NATB 5909

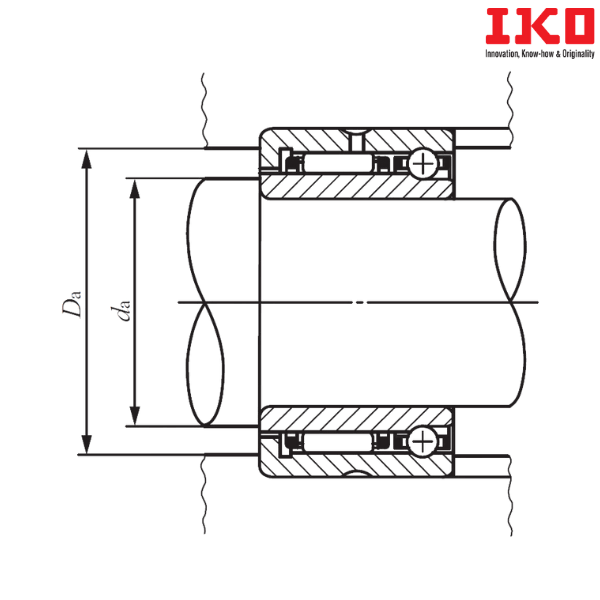

** Images are for representation purposes only
