Description
Brand - IKO
Item Number - NAST 8 ZZUUR IKO
Also Known As - NAST8ZZUUR
Category - Separable Roller Followers, Sealed Type With Cage/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)
Shaft Diameter (mm) - 8

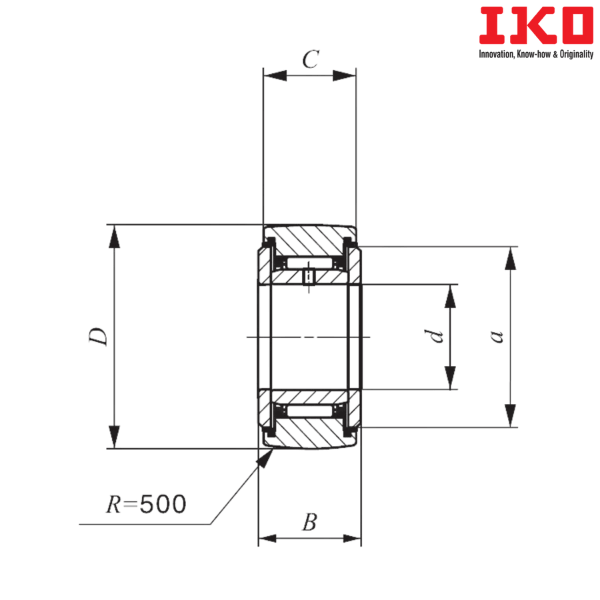

Bore Diameter (d) mm - 8
Outer Diameter (D) mm - 24
Width (B) mm - 14
Boundary dimension (C) mm - 13.8
Boundary dimension (a) mm - 17.5
Boundary dimension (e) mm - 2.5
Boundary dimension (f) mm - 0.8
Basic Dynamic Load Rating (C) N - 5650
Basic Static Load Rating (C0) N - 5890
Weight (kg) - 0.039
Shield Type Bearing with Clindrical Outer Ring - NAST 8 ZZ
Shield Type Bearing with Crowned Outer Ring - NAST 8 ZZR
Sealed Type Bearing with Clindrical Outer Ring - NAST 8 ZZUU
Suffix Description :
ZZUUR - With Crowned Outer Ring

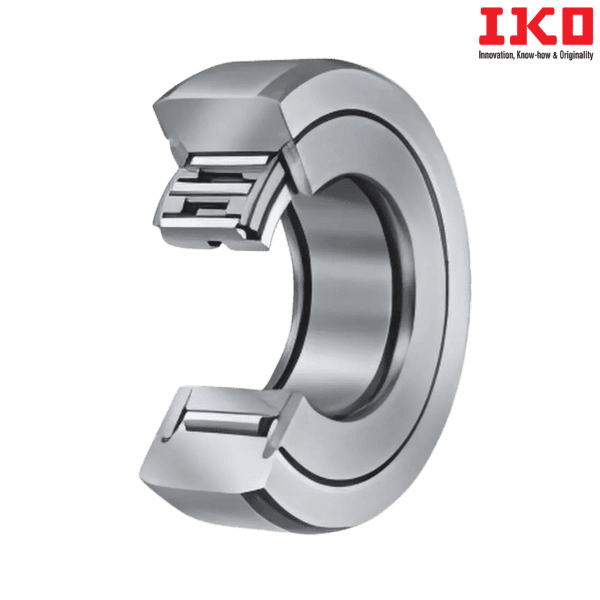

** Images are for representation purposes only
