Description
Brand - IKO
Item Number - NAST 8 ZZ IKO
Also Known As - NAST8ZZ
Category - Separable Roller Followers, Shield Type With Cage/With Inner Ring
Type - Shield Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 8
Bore Diameter (d) mm - 8
Outer Diameter (D) mm - 24
Width (B) mm - 14

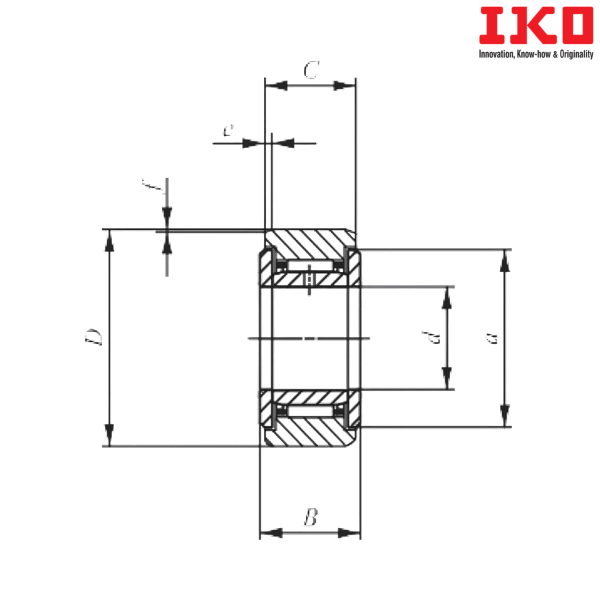

Boundary dimension (C) mm - 13.8
Boundary dimension (a) mm - 17.5
Boundary dimension (e) mm - 2.5
Boundary dimension (f) mm - 0.8
Basic Dynamic Load Rating (C) N - 5650
Basic Static Load Rating (C0) N - 5890
Weight (kg) - 0.039
Shield Type Bearing with Crowned Outer Ring - NAST 8 ZZR
Sealed Type Bearing with Crowned Outer Ring - NAST 8 ZZUUR
Sealed Type Bearing with Clindrical Outer Ring - NAST 8 ZZUU
Suffix Description :
ZZ - With Cylindrical Outer Ring

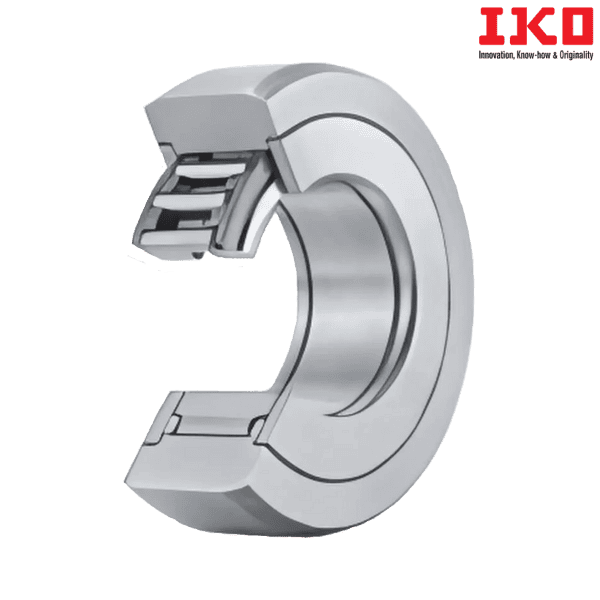

** Images are for representation purposes only
