Description
Brand - IKO
Item Number - NAST 8 R IKO
Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Crowned Outer Ring)
Also Known As - NAST8R

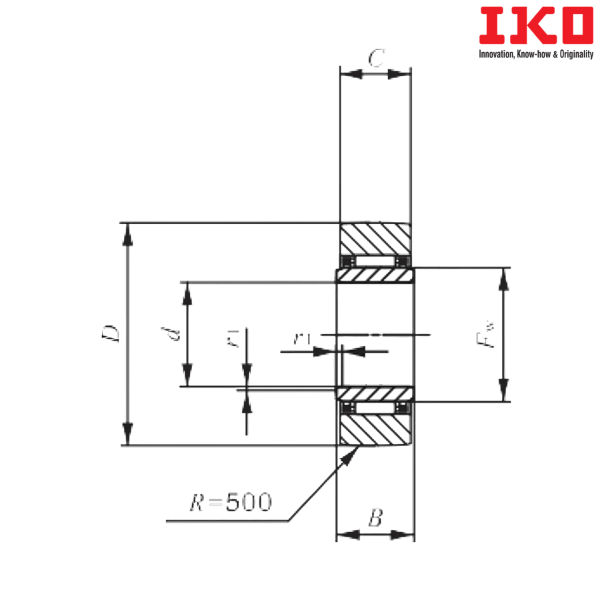

Shaft Diameter (mm) - 8
Bore Diameter (d) mm - 8
Outer Diameter (D) mm - 24
Width (B) mm - 10
Boundary dimension (C) mm - 9.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 0.6
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Boundary dimension (Fw) mm - 12
Basic Dynamic Load Rating (C) N - 5650
Basic Static Load Rating (C0) N - 5890
Assembled Inner Ring - LRT 81210 S
Open Type Bearing with Cylindrical Outer Ring - NAST 8
Weight (kg) - 0.028
Suffix Description :
R - With Crowned Outer Ring

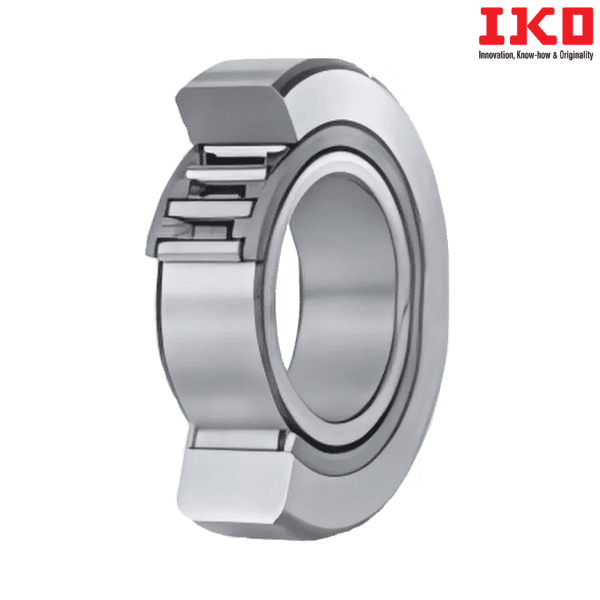

** Images are for representation purposes only
