Description
Brand - IKO
Item Number - NAST 6 ZZUUR IKO
Also Known As - NAST6ZZUUR

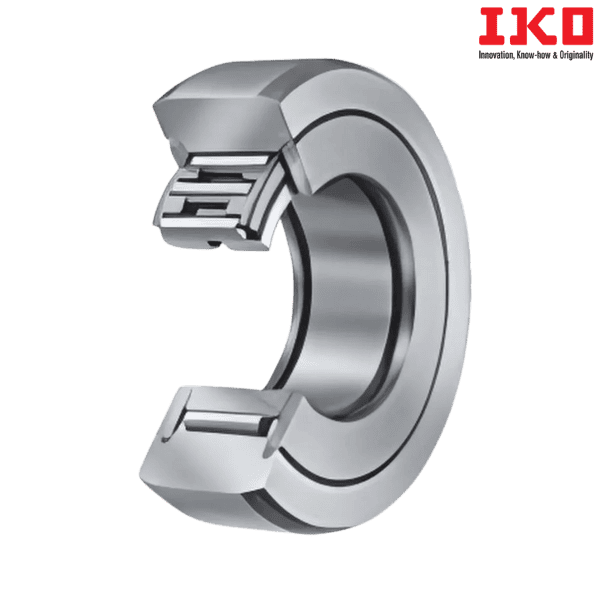

Category - Separable Roller Followers, Sealed Type With Cage/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)
Shaft Diameter (mm) - 6

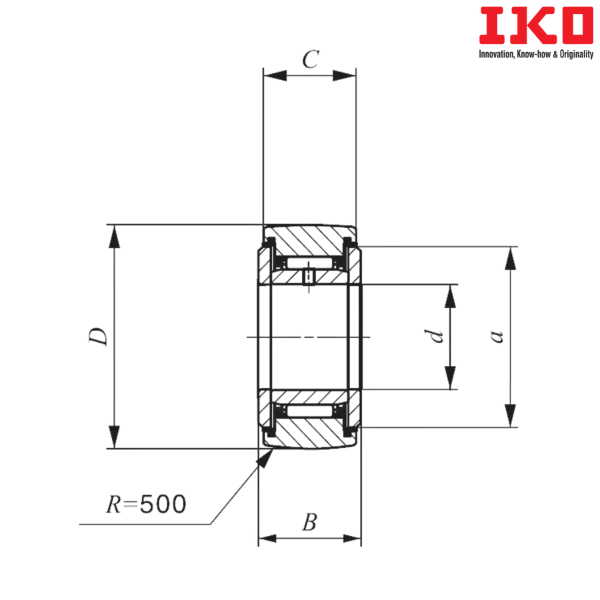

Bore Diameter (d) mm - 6
Outer Diameter (D) mm - 19
Width (B) mm - 14
Boundary dimension (C) mm - 13.8
Boundary dimension (a) mm - 14
Boundary dimension (e) mm - 2.5
Boundary dimension (f) mm - 0.8
Basic Dynamic Load Rating (C) N - 4160
Basic Static Load Rating (C0) N - 4550
Weight (kg) - 0.0245
Shield Type Bearing with Clindrical Outer Ring - NAST 6 ZZ
Shield Type Bearing with Crowned Outer Ring - NAST 6 ZZR
Sealed Type Bearing with Clindrical Outer Ring - NAST 6 ZZUU
Suffix Description :
ZZUUR - With Crowned Outer Ring
