NAST 6 R IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - NAST 6 R IKO

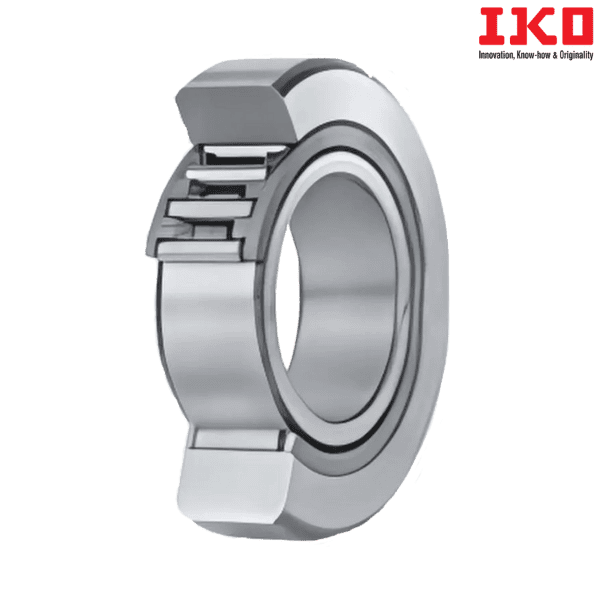

Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Crowned Outer Ring)
Also Known As - NAST6R

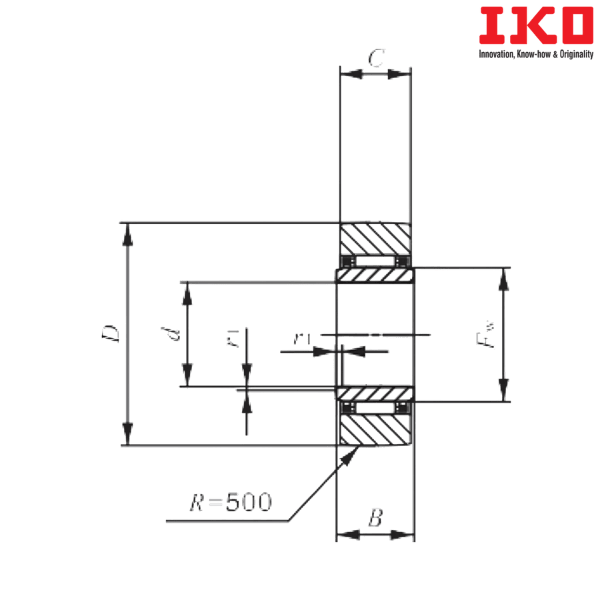

Shaft Diameter (mm) - 6
Bore Diameter (d) mm - 6
Outer Diameter (D) mm - 19
Width (B) mm - 10
Boundary dimension (C) mm - 9.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 0.3
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Boundary dimension (Fw) mm - 10
Basic Dynamic Load Rating (C) N - 4160
Basic Static Load Rating (C0) N - 4550
Assembled Inner Ring - LRT 61010 S
Open Type Bearing with Cylindrical Outer Ring - NAST 6
Weight (kg) - 0.0178

Suffix Description :
R - With Crowned Outer Ring

** Images are for representation purposes only
