Description
Brand - IKO
Item Number - NAST 6 IKO
Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Also Known As - NAST6

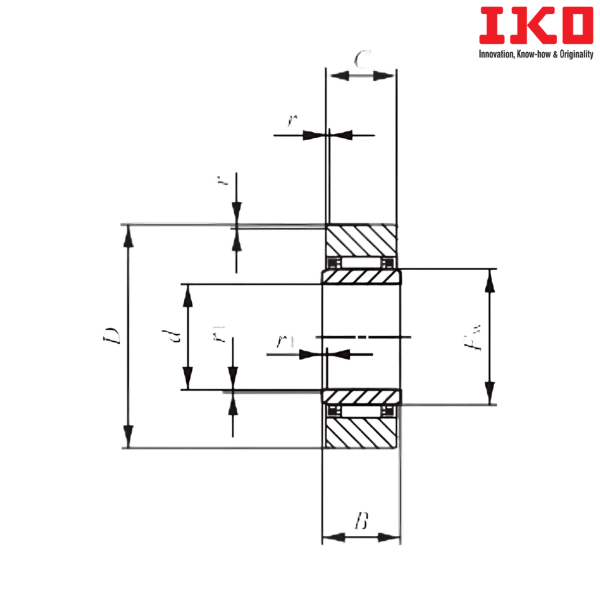

Shaft Diameter (mm) - 6
Bore Diameter (d) mm - 6
Outer Diameter (D) mm - 19
Width (B) mm - 10
Boundary dimension (C) mm - 9.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 0.3
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Boundary dimension (Fw) mm - 10
Basic Dynamic Load Rating (C) N - 4160
Basic Static Load Rating (C0) N - 4550
Assembled Inner Ring - LRT 61010 S
Open Type Bearing with Crowned Outer Ring - NAST 6 R
Weight (kg) - 0.0178
** Images are for representation purposes only
