Description
Brand - IKO
Item Number - NAST 50 ZZUUR IKO
Also Known As - NAST50ZZUUR
Category - Separable Roller Followers, Sealed Type With Cage/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)
Shaft Diameter (mm) - 50

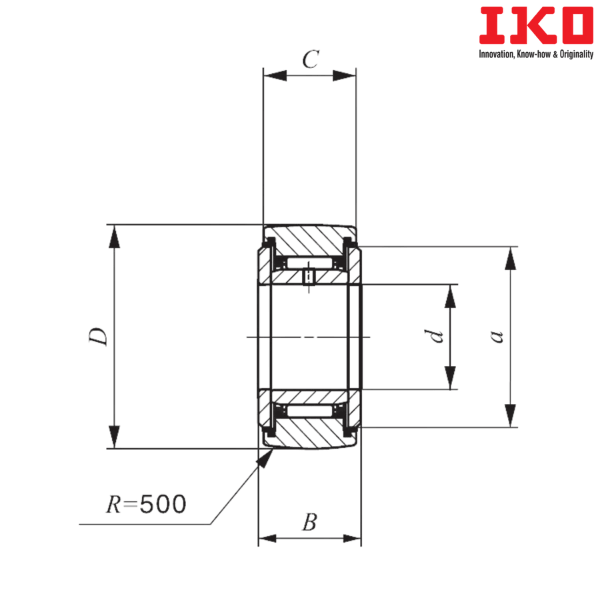

Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (B) mm - 26
Boundary dimension (C) mm - 25.8
Boundary dimension (a) mm - 76
Boundary dimension (e) mm - 4
Boundary dimension (f) mm - 1.2
Basic Dynamic Load Rating (C) N - 38900
Basic Static Load Rating (C0) N - 71700
Weight (kg) - 0.83
Shield Type Bearing with Clindrical Outer Ring - NAST 50 ZZ
Shield Type Bearing with Crowned Outer Ring - NAST 50 ZZR
Sealed Type Bearing with Clindrical Outer Ring - NAST 50 ZZUU
Suffix Description :
ZZUUR - With Crowned Outer Ring
** Images are for representation purposes only
