Description
Brand - IKO
Item Number - NAST 50 ZZUU IKO
Also Known As - NAST50ZZUU
Category - Separable Roller Followers, Sealed Type With Cage/With Inner Ring
Type - Sealed Type (Cylindrical Outer Ring)

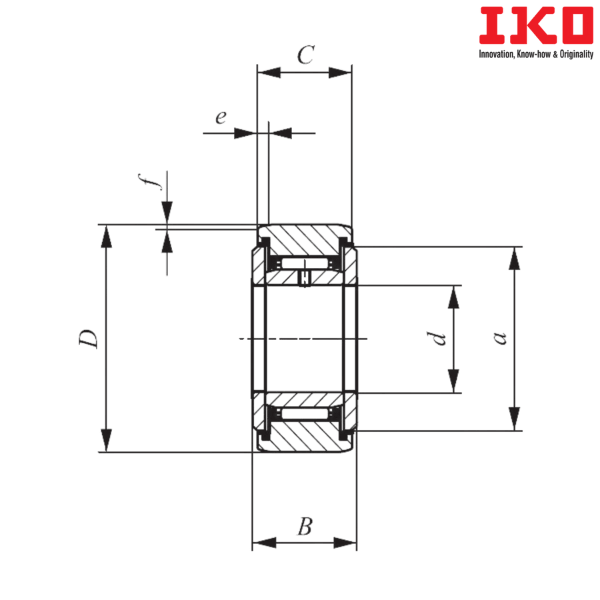

Shaft Diameter (mm) - 50
Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (B) mm - 26
Boundary dimension (C) mm - 25.8
Boundary dimension (a) mm - 76
Boundary dimension (e) mm - 4
Boundary dimension (f) mm - 1.2
Basic Dynamic Load Rating (C) N - 38900
Basic Static Load Rating (C0) N - 71700
Weight (kg) - 0.83
Shield Type Bearing with Crowned Outer Ring - NAST 50 ZZR
Shield Type Bearing with Clindrical Outer Ring - NAST 50 ZZ
Sealed Type Bearing with Crowned Outer Ring - NAST 50 ZZUUR
Suffix Description :
ZZUU - With Cylindrical Outer Ring
** Images are for representation purposes only
