Description
Brand - IKO
Item Number - NAST 50 IKO
Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Also Known As - NAST50
Shaft Diameter (mm) - 50
Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (B) mm - 20
Boundary dimension (C) mm - 19.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1.5
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 1
Boundary dimension (Fw) mm - 60
Basic Dynamic Load Rating (C) N - 38900
Basic Static Load Rating (C0) N - 71700
Assembled Inner Ring - LRT 506020 S
Open Type Bearing with Crowned Outer Ring - NAST 50 R
Weight (kg) - 0.635

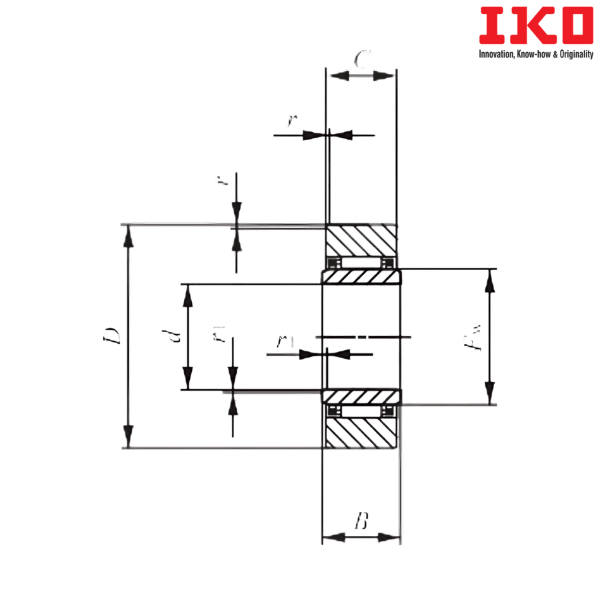

** Images are for representation purposes only
