Description
Brand - IKO
Item Number - NAST 40 ZZR IKO
Also Known As - NAST40ZZR
Category - Separable Roller Followers, Shield Type With Cage/With Inner Ring
Type - Shield Type (Crowned Outer Ring)
Shaft Diameter (mm) - 40

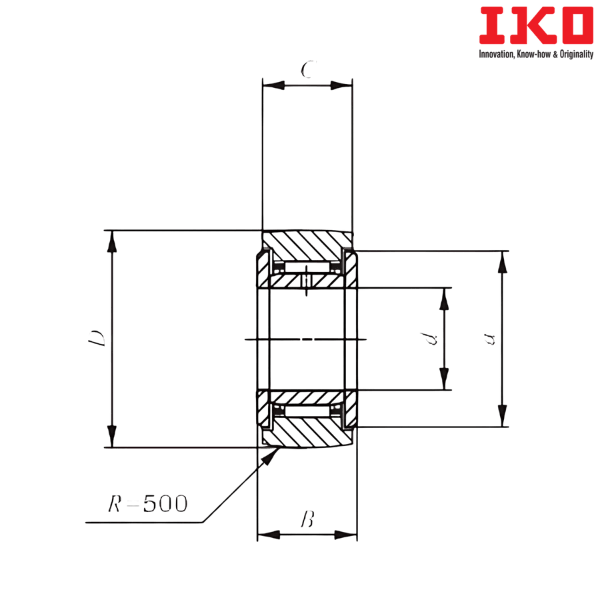

Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 80
Width (B) mm - 26
Boundary dimension (C) mm - 25.8
Boundary dimension (a) mm - 61.5
Boundary dimension (e) mm - 4
Boundary dimension (f) mm - 1.2
Basic Dynamic Load Rating (C) N - 35900
Basic Static Load Rating (C0) N - 61100
Weight (kg) - 0.71
Shield Type Bearing with Clindrical Outer Ring - NAST 40 ZZ
Sealed Type Bearing with Crowned Outer Ring - NAST 40 ZZUUR
Sealed Type Bearing with Clindrical Outer Ring - NAST 40 ZZUU
Suffix Description :
ZZR - With Crowned Outer Ring

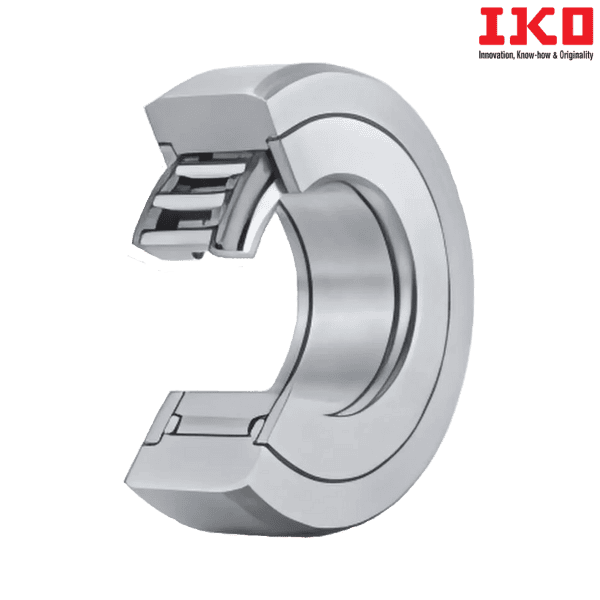

** Images are for representation purposes only
