Description
Brand - IKO
Item Number - NAST 40 IKO
Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Also Known As - NAST40

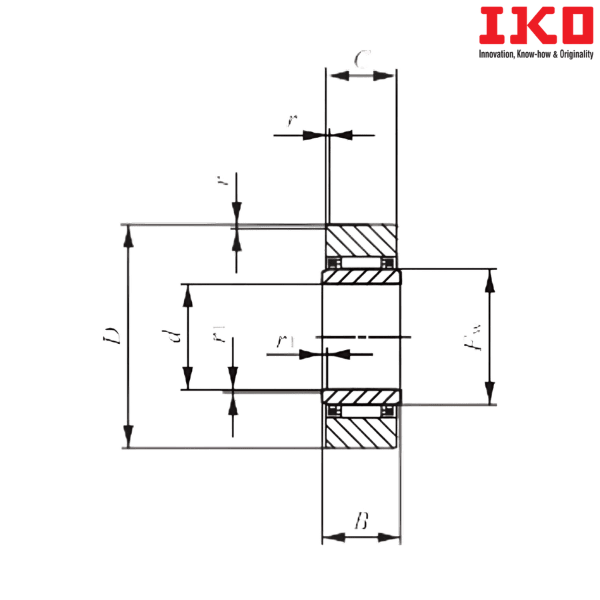

Shaft Diameter (mm) - 40
Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 80
Width (B) mm - 20
Boundary dimension (C) mm - 19.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1.5
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 1
Boundary dimension (Fw) mm - 50
Basic Dynamic Load Rating (C) N - 35900
Basic Static Load Rating (C0) N - 61100
Assembled Inner Ring - LRT 405020 S
Open Type Bearing with Crowned Outer Ring - NAST 40 R
Weight (kg) - 0.53
** Images are for representation purposes only
