NAST 35 R IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - NAST 35 R IKO

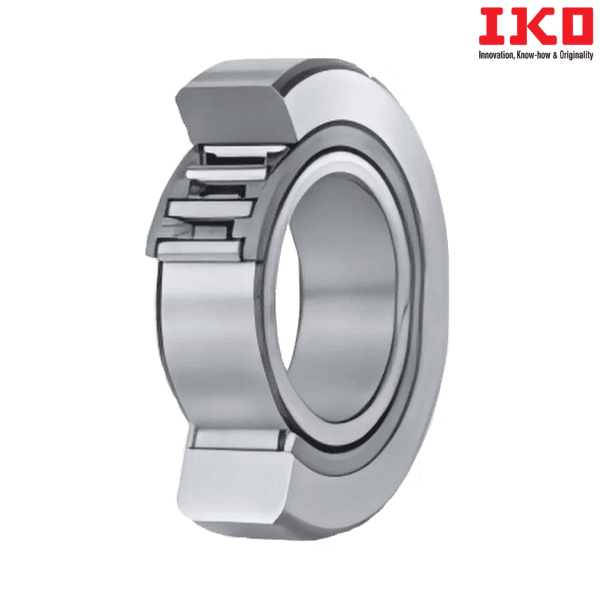

Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Crowned Outer Ring)
Also Known As - NAST35R

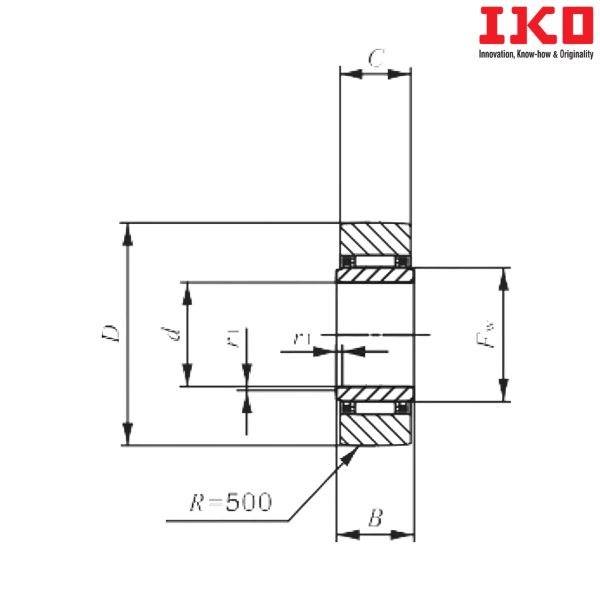

Shaft Diameter (mm) - 35
Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 72
Width (B) mm - 20
Boundary dimension (C) mm - 19.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.6
Boundary dimension (Fw) mm - 42
Basic Dynamic Load Rating (C) N - 32400
Basic Static Load Rating (C0) N - 50600
Assembled Inner Ring - LRT 354220 S
Open Type Bearing with Cylindrical Outer Ring - NAST 35
Weight (kg) - 0.44

Suffix Description :
R - With Crowned Outer Ring

** Images are for representation purposes only
