Description
Brand - IKO
Item Number - NAST 30 ZZUUR IKO
Also Known As - NAST30ZZUUR
Category - Separable Roller Followers, Sealed Type With Cage/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)

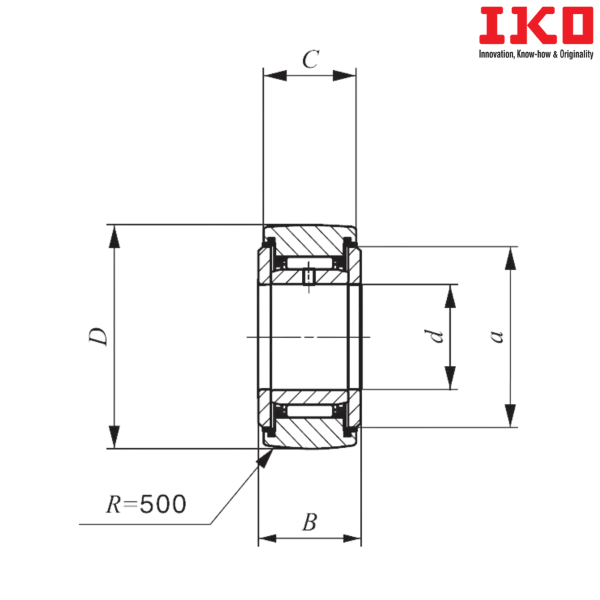

Shaft Diameter (mm) - 30
Bore Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (B) mm - 25
Boundary dimension (C) mm - 24.8
Boundary dimension (a) mm - 50.5
Boundary dimension (e) mm - 4
Boundary dimension (f) mm - 1.2
Basic Dynamic Load Rating (C) N - 30500
Basic Static Load Rating (C0) N - 45400
Weight (kg) - 0.4
Shield Type Bearing with Clindrical Outer Ring - NAST 30 ZZ
Shield Type Bearing with Crowned Outer Ring - NAST 30 ZZR
Sealed Type Bearing with Clindrical Outer Ring - NAST 30 ZZUU
Suffix Description :
ZZUUR - With Crowned Outer Ring
** Images are for representation purposes only
