Description
Brand - IKO
Item Number - NAST 30 IKO
Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Also Known As - NAST30
Shaft Diameter (mm) - 30
Bore Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (B) mm - 20
Boundary dimension (C) mm - 19.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.6
Boundary dimension (Fw) mm - 38
Basic Dynamic Load Rating (C) N - 30500
Basic Static Load Rating (C0) N - 45400
Assembled Inner Ring - LRT 303820 S
Open Type Bearing with Crowned Outer Ring - NAST 30 R
Weight (kg) - 0.32

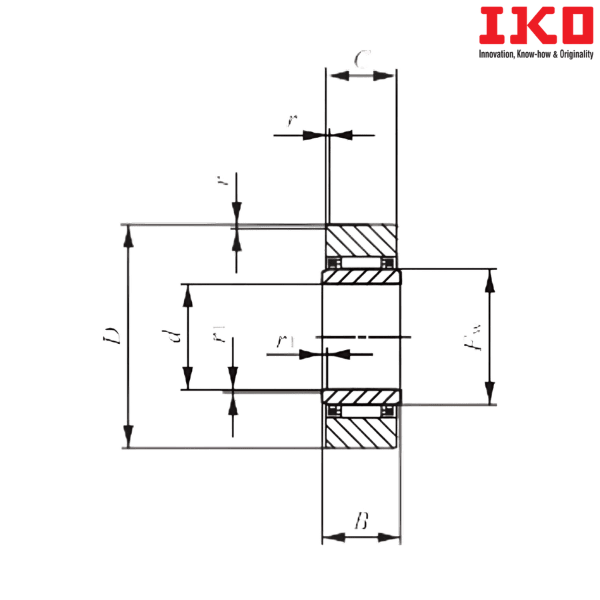

** Images are for representation purposes only
