Description
Brand - IKO
Item Number - NAST 25 ZZ IKO
Also Known As - NAST25ZZ
Category - Separable Roller Followers, Shield Type With Cage/With Inner Ring
Type - Shield Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 25
Bore Diameter (d) mm - 25
Outer Diameter (D) mm - 52
Width (B) mm - 20

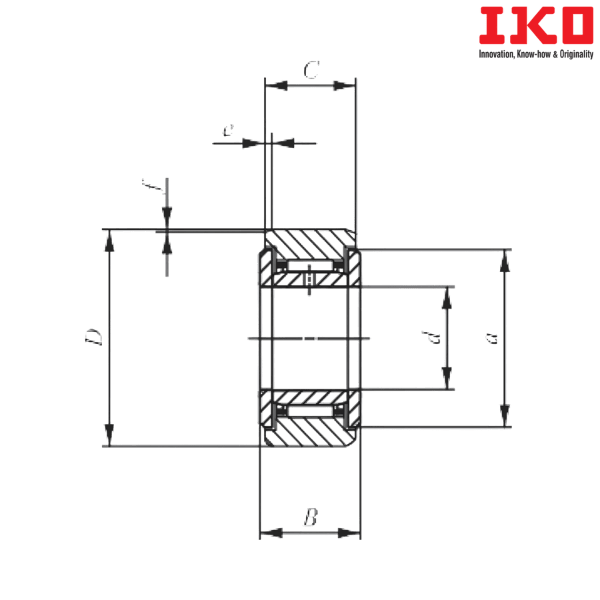

Boundary dimension (C) mm - 19.8
Boundary dimension (a) mm - 43
Boundary dimension (e) mm - 3
Boundary dimension (f) mm - 1
Basic Dynamic Load Rating (C) N - 20800
Basic Static Load Rating (C0) N - 28400
Weight (kg) - 0.225
Shield Type Bearing with Crowned Outer Ring - NAST 25 ZZR
Sealed Type Bearing with Crowned Outer Ring - NAST 25 ZZUUR
Sealed Type Bearing with Clindrical Outer Ring - NAST 25 ZZUU
Suffix Description :
ZZ - With Cylindrical Outer Ring
** Images are for representation purposes only
