NAST 25 R IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - NAST 25 R IKO

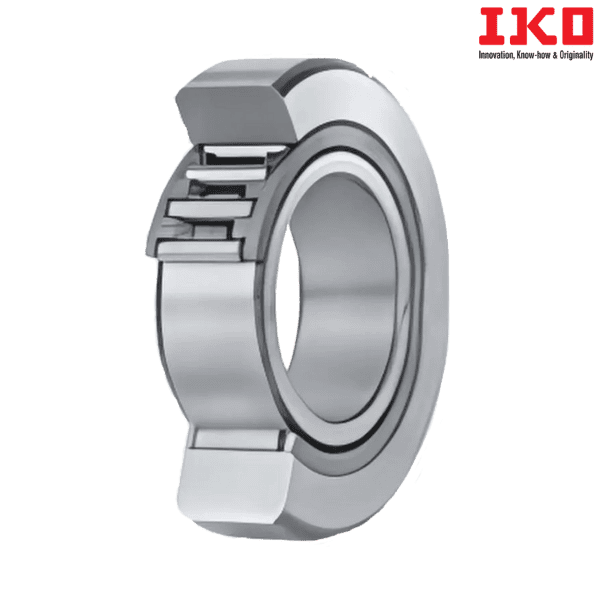

Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Crowned Outer Ring)
Also Known As - NAST25R

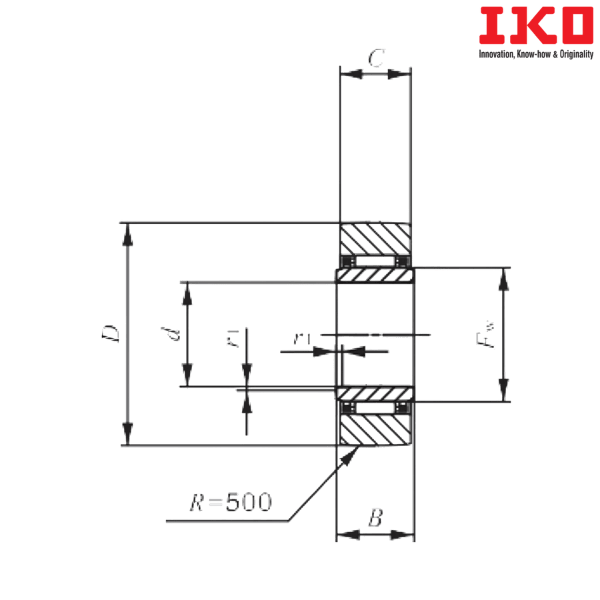

Shaft Diameter (mm) - 25
Bore Diameter (d) mm - 25
Outer Diameter (D) mm - 52
Width (B) mm - 16
Boundary dimension (C) mm - 15.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Boundary dimension (Fw) mm - 30
Basic Dynamic Load Rating (C) N - 20800
Basic Static Load Rating (C0) N - 28400
Assembled Inner Ring - LRT 253016 S
Open Type Bearing with Cylindrical Outer Ring - NAST 25
Weight (kg) - 0.18

Suffix Description :
R - With Crowned Outer Ring
