NAST 20 ZZR IKO

Brand - IKO
Item Number - NAST 20 ZZR IKO
Also Known As - NAST20ZZR
Category - Separable Roller Followers, Shield Type With Cage/With Inner Ring
Type - Shield Type (Crowned Outer Ring)
Shaft Diameter (mm) - 20
Bore Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (B) mm - 20

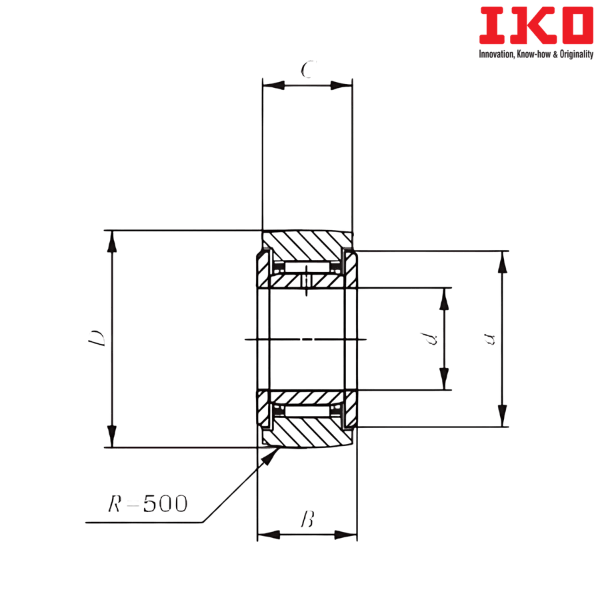

Boundary dimension (C) mm - 19.8
Boundary dimension (a) mm - 38
Boundary dimension (e) mm - 3
Boundary dimension (f) mm - 1
Basic Dynamic Load Rating (C) N - 19400
Basic Static Load Rating (C0) N - 24500
Weight (kg) - 0.195
Shield Type Bearing with Clindrical Outer Ring - NAST 20 ZZ
Sealed Type Bearing with Crowned Outer Ring - NAST 20 ZZUUR
Sealed Type Bearing with Clindrical Outer Ring - NAST 20 ZZUU

Suffix Description :
ZZR - With Crowned Outer Ring

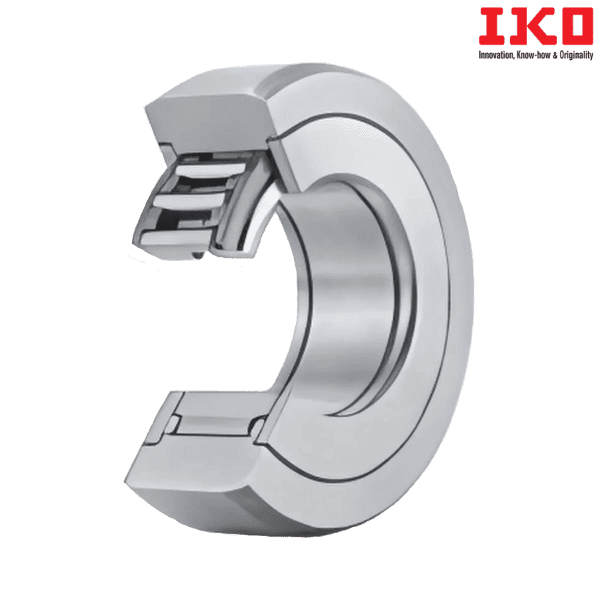

** Images are for representation purposes only
