Description
Brand - IKO
Item Number - NAST 20 R IKO
Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Crowned Outer Ring)
Also Known As - NAST20R
Shaft Diameter (mm) - 20
Bore Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Width (B) mm - 16
Boundary dimension (C) mm - 15.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Boundary dimension (Fw) mm - 25
Basic Dynamic Load Rating (C) N - 19400
Basic Static Load Rating (C0) N - 24500
Assembled Inner Ring - LRT 202516 S
Open Type Bearing with Cylindrical Outer Ring - NAST 20
Weight (kg) - 0.157
Suffix Description :
R - With Crowned Outer Ring

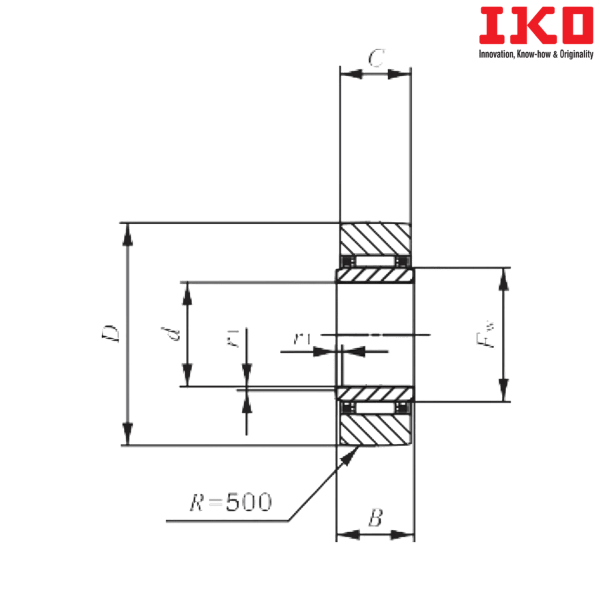

** Images are for representation purposes only
