Description
Brand - IKO
Item Number - NAST 17 ZZUUR IKO
Also Known As - NAST17ZZUUR
Category - Separable Roller Followers, Sealed Type With Cage/With Inner Ring
Type - Sealed Type (Crowned Outer Ring)
Shaft Diameter (mm) - 17
Bore Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 20

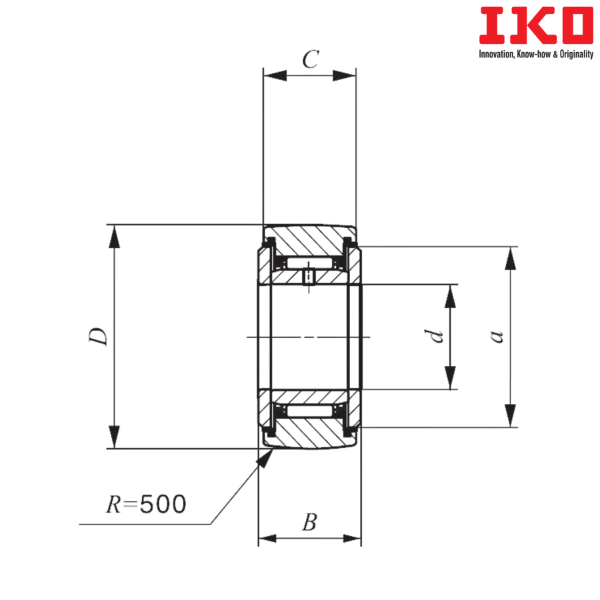

Boundary dimension (C) mm - 19.8
Boundary dimension (a) mm - 32.5
Boundary dimension (e) mm - 3
Boundary dimension (f) mm - 1
Basic Dynamic Load Rating (C) N - 17600
Basic Static Load Rating (C0) N - 20900
Weight (kg) - 0.135
Shield Type Bearing with Clindrical Outer Ring - NAST 17 ZZ
Shield Type Bearing with Crowned Outer Ring - NAST 17 ZZR
Sealed Type Bearing with Clindrical Outer Ring - NAST 17 ZZUU
Suffix Description :
ZZUUR - With Crowned Outer Ring
** Images are for representation purposes only
