NAST 17 R IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - NAST 17 R IKO

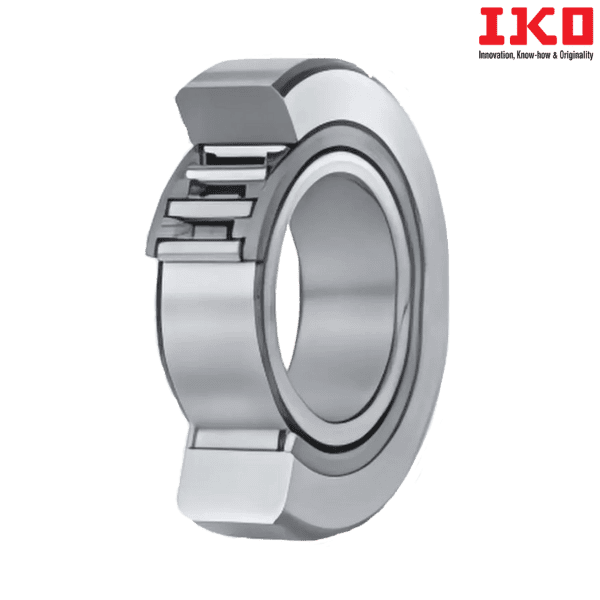

Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Crowned Outer Ring)
Also Known As - NAST17R

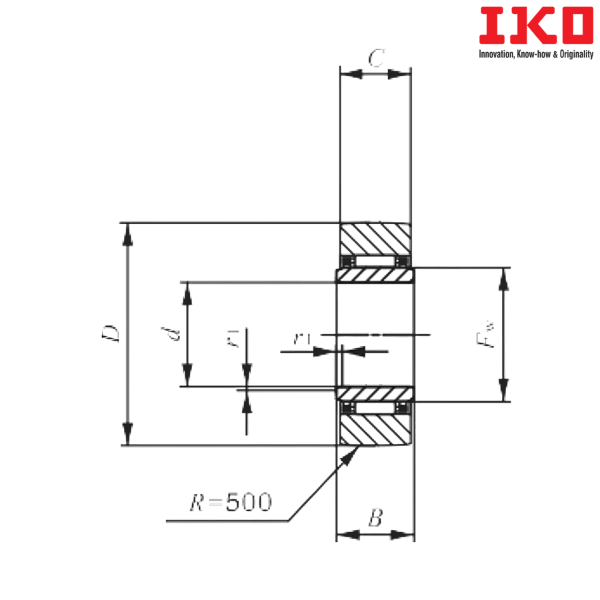

Shaft Diameter (mm) - 17
Bore Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 16
Boundary dimension (C) mm - 15.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Boundary dimension (Fw) mm - 22
Basic Dynamic Load Rating (C) N - 17600
Basic Static Load Rating (C0) N - 20900
Assembled Inner Ring - LRT 172216 S
Open Type Bearing with Cylindrical Outer Ring - NAST 17
Weight (kg) - 0.109

Suffix Description :
R - With Crowned Outer Ring
