Description
Brand - IKO
Item Number - NAST 17 IKO
Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Cylindrical Outer Ring)
Also Known As - NAST17

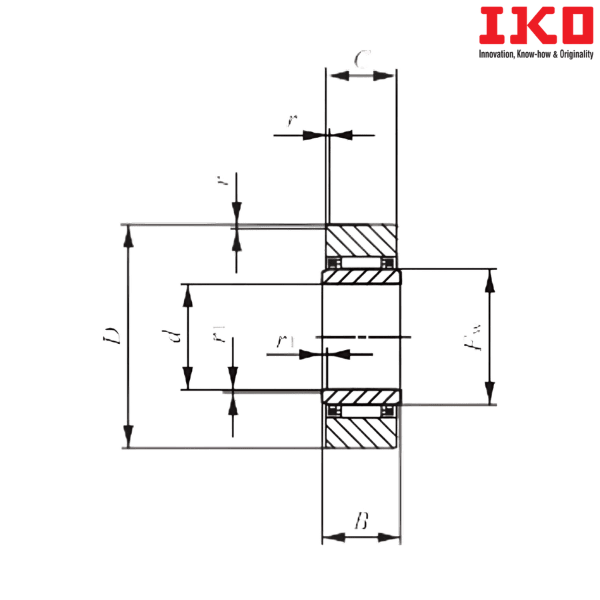

Shaft Diameter (mm) - 17
Bore Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 16
Boundary dimension (C) mm - 15.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Boundary dimension (Fw) mm - 22
Basic Dynamic Load Rating (C) N - 17600
Basic Static Load Rating (C0) N - 20900
Assembled Inner Ring - LRT 172216 S
Open Type Bearing with Crowned Outer Ring - NAST 17 R
Weight (kg) - 0.109
** Images are for representation purposes only
