NAST 15 R IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - NAST 15 R IKO

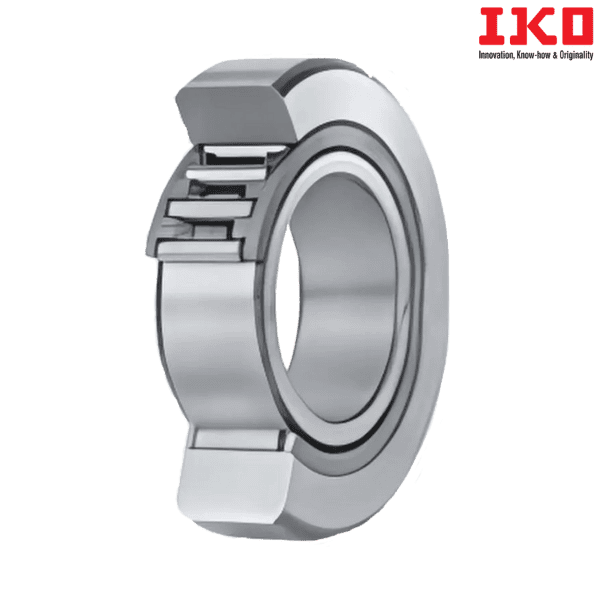

Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Crowned Outer Ring)
Also Known As - NAST15R
Shaft Diameter (mm) - 15
Bore Diameter (d) mm - 15
Outer Diameter (D) mm - 35
Width (B) mm - 12
Boundary dimension (C) mm - 11.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Boundary dimension (Fw) mm - 20
Basic Dynamic Load Rating (C) N - 12400
Basic Static Load Rating (C0) N - 14300
Assembled Inner Ring - LRT 152012 S
Open Type Bearing with Cylindrical Outer Ring - NAST 15
Weight (kg) - 0.062

Suffix Description :
R - With Crowned Outer Ring

** Images are for representation purposes only
