Description
Brand - IKO
Item Number - NAST 12 ZZUU IKO
Also Known As - NAST12ZZUU
Category - Separable Roller Followers, Sealed Type With Cage/With Inner Ring
Type - Sealed Type (Cylindrical Outer Ring)

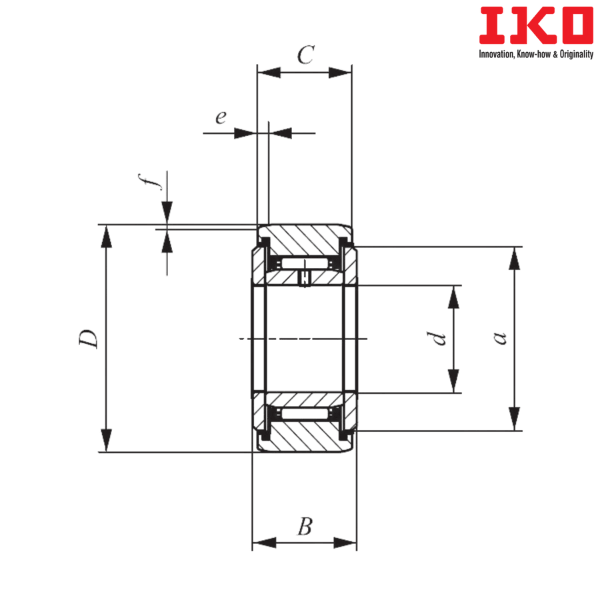

Shaft Diameter (mm) - 12
Bore Diameter (d) mm - 12
Outer Diameter (D) mm - 32
Width (B) mm - 16
Boundary dimension (C) mm - 15.8
Boundary dimension (a) mm - 25.5
Boundary dimension (e) mm - 2.5
Boundary dimension (f) mm - 0.8
Basic Dynamic Load Rating (C) N - 10500
Basic Static Load Rating (C0) N - 10900
Weight (kg) - 0.075
Shield Type Bearing with Crowned Outer Ring - NAST 12 ZZR
Shield Type Bearing with Clindrical Outer Ring - NAST 12 ZZ
Sealed Type Bearing with Crowned Outer Ring - NAST 12 ZZUUR
Suffix Description :
ZZUU - With Cylindrical Outer Ring
** Images are for representation purposes only
