Description
Brand - IKO
Item Number - NAST 12 R IKO
Category - Separable Roller Followers, Open Type With Cage/With Inner Ring
Type - Open Type (Crowned Outer Ring)
Also Known As - NAST12R

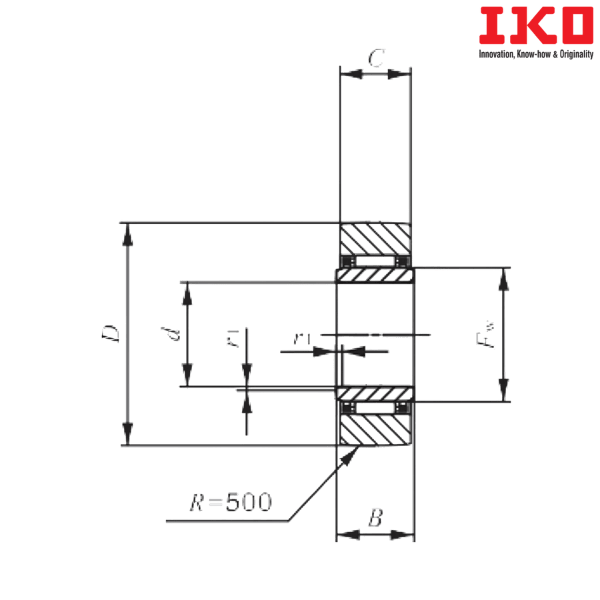

Shaft Diameter (mm) - 12
Bore Diameter (d) mm - 12
Outer Diameter (D) mm - 32
Width (B) mm - 12
Boundary dimension (C) mm - 11.8
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Boundary dimension (Fw) mm - 16
Basic Dynamic Load Rating (C) N - 10500
Basic Static Load Rating (C0) N - 10900
Assembled Inner Ring - LRT 121612 S
Open Type Bearing with Cylindrical Outer Ring - NAST 12
Weight (kg) - 0.058
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
