Description
Brand - IKO
Item Number - NAST 10 ZZ IKO
Also Known As - NAST10ZZ
Category - Separable Roller Followers, Shield Type With Cage/With Inner Ring
Type - Shield Type (Cylindrical Outer Ring)
Shaft Diameter (mm) - 10
Bore Diameter (d) mm - 10
Outer Diameter (D) mm - 30
Width (B) mm - 16
Boundary dimension (C) mm - 15.8
Boundary dimension (a) mm - 23.5
Boundary dimension (e) mm - 2.5
Boundary dimension (f) mm - 0.8
Basic Dynamic Load Rating (C) N - 9790
Basic Static Load Rating (C0) N - 9680
Weight (kg) - 0.065
Shield Type Bearing with Crowned Outer Ring - NAST 10 ZZR
Sealed Type Bearing with Crowned Outer Ring - NAST 10 ZZUUR
Sealed Type Bearing with Clindrical Outer Ring - NAST 10 ZZUU
Suffix Description :
ZZ - With Cylindrical Outer Ring

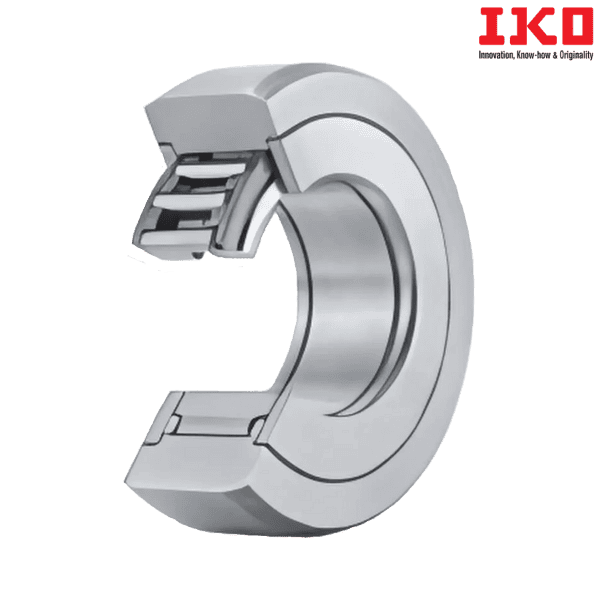

** Images are for representation purposes only
