Description
Brand - IKO
Item Number - NART 8 VUUR IKO
Also Known As - NART8VUUR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Sealed Type (Crowned Outer Ring with Full Complement)

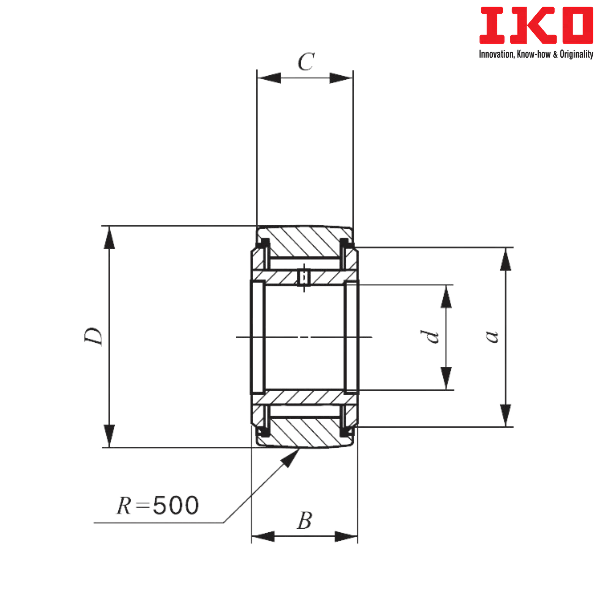

Shaft Diameter (mm) - 8
Bore Diameter (d) mm - 8
Outer Diameter (D) mm - 24
Width (B) mm - 15
Boundary dimension (C) mm - 14
Boundary dimension (a) mm - 17.5
Basic Dynamic Load Rating (C) N - 11800
Basic Static Load Rating (C0) N - 15600
Maximum allowable static load (N) - 15600
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 8 VR
Weight (kg) - 0.0425
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
V - With Full Complement of Rolling Elements

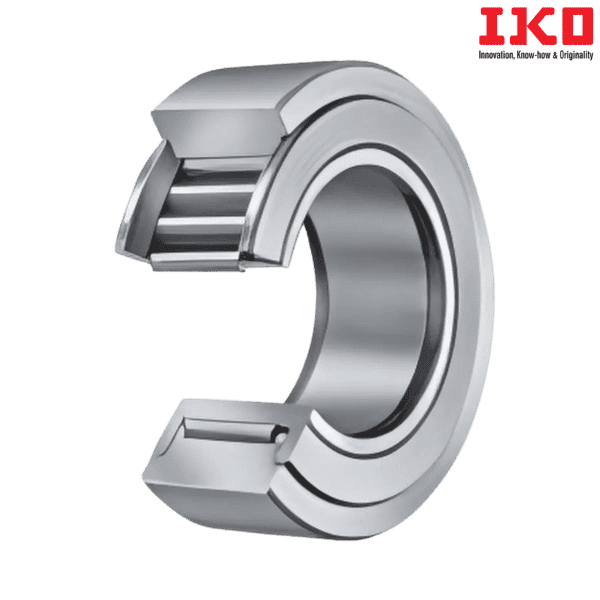

** Images are for representation purposes only
