Description
Brand - IKO
Item Number - NART 8 UUR IKO
Also Known As - NART8UUR
Category - Non-Separable Roller Followers (High Carbon Steel Made)

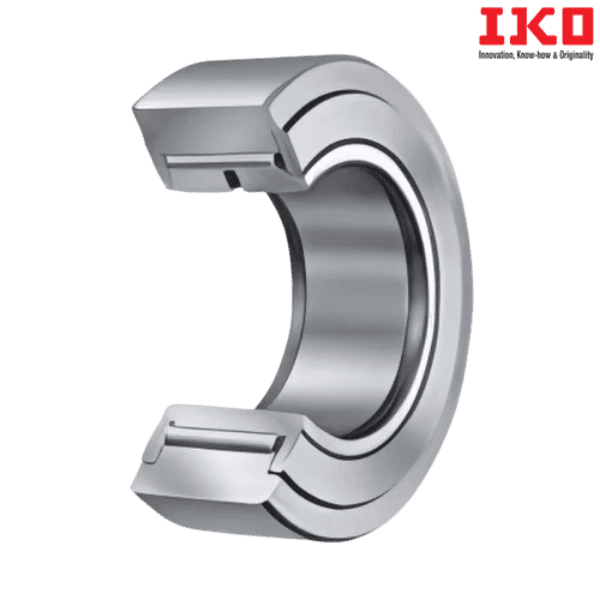

Type - Sealed Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 8

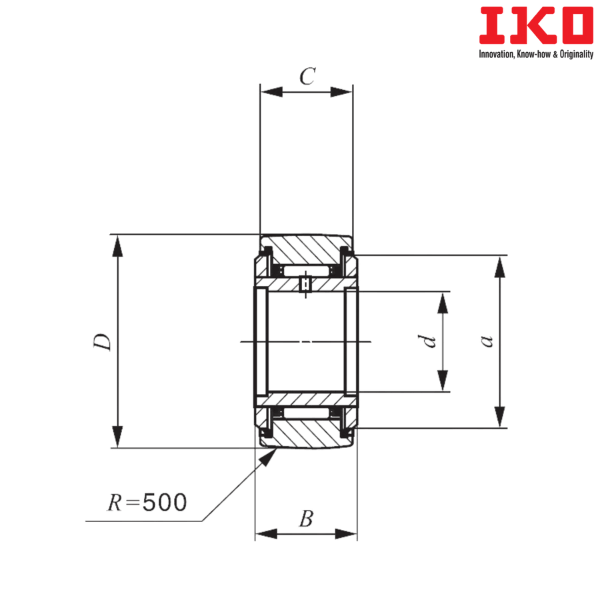

Bore Diameter (d) mm - 8
Outer Diameter (D) mm - 24
Width (B) mm - 15
Boundary dimension (C) mm - 14
Boundary dimension (a) mm - 17.5
Basic Dynamic Load Rating (C) N - 5640
Basic Static Load Rating (C0) N - 5900
Maximum allowable static load (N) - 5900
Shield Type Bearing with Crowned Outer Ring (With Cage) - NART 8 R
Weight (kg) - 0.0415
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
** Images are for representation purposes only
