Description
Brand - IKO
Item Number - NART 6 VR IKO
Also Known As - NART6VR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Full Complement)
Shaft Diameter (mm) - 6

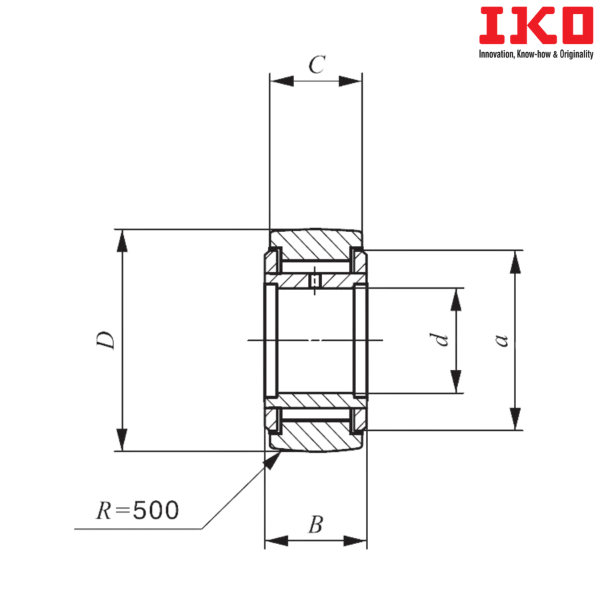

Bore Diameter (d) mm - 6
Outer Diameter (D) mm - 19
Width (B) mm - 12
Boundary dimension (C) mm - 11
Boundary dimension (a) mm - 14
Basic Dynamic Load Rating (C) N - 7690
Basic Static Load Rating (C0) N - 10300
Maximum allowable static load (N) - 10300
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 6 VUUR
Weight (kg) - 0.0215
Suffix Description :
R - With Crowned Outer Ring
V - With Full Complement of Rolling Elements

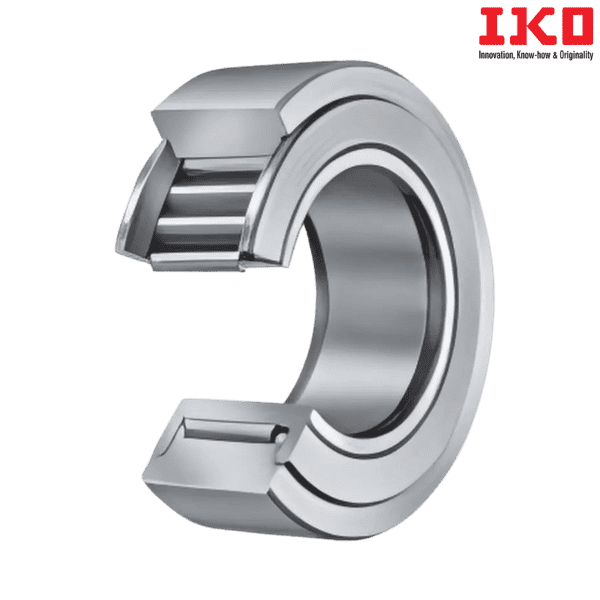

** Images are for representation purposes only
