Description
Brand - IKO
Item Number - NART 6 UUR IKO
Also Known As - NART6UUR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Sealed Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 6
Bore Diameter (d) mm - 6
Outer Diameter (D) mm - 19
Width (B) mm - 12
Boundary dimension (C) mm - 11
Boundary dimension (a) mm - 14
Basic Dynamic Load Rating (C) N - 4250
Basic Static Load Rating (C0) N - 4740
Maximum allowable static load (N) - 4740
Shield Type Bearing with Crowned Outer Ring (With Cage) - NART 6 R
Weight (kg) - 0.0205
Suffix Description :
R - With Crowned Outer Ring
U - Rubber Seals at Each Side

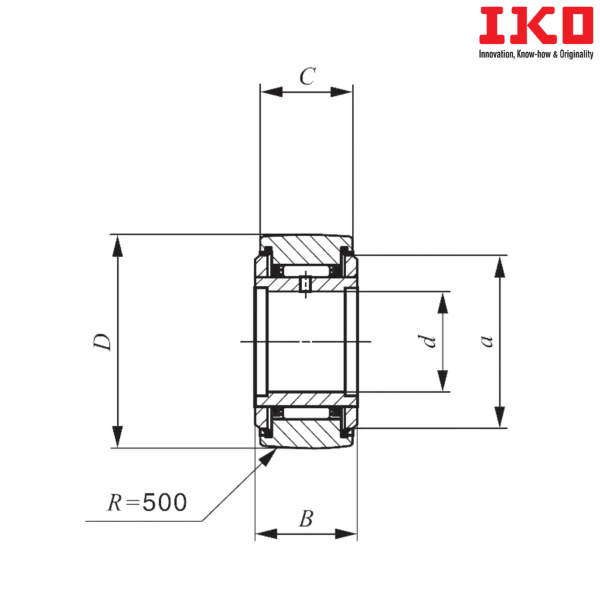

** Images are for representation purposes only
