Description
Brand - IKO
Item Number - NART 6 FUUR IKO
Also Known As - NART6FUUR

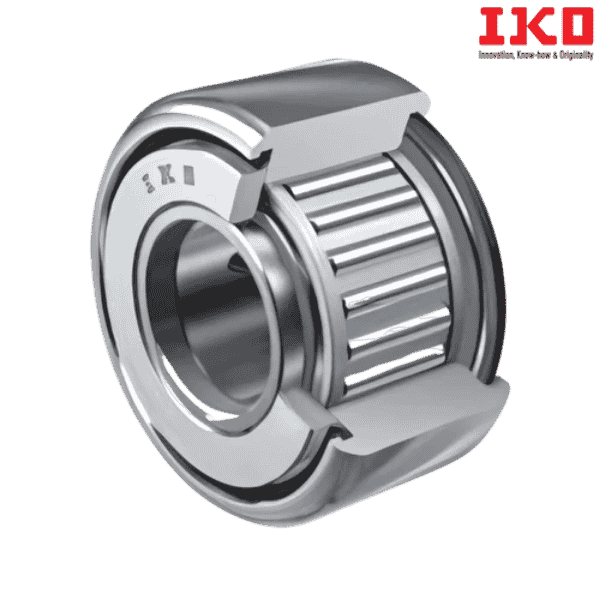

Category - Non-Separable Roller Followers (Stainless Steel Made) With Cage/With Inner Ring
Type - Sealed Type
Shaft Diameter (mm) - 6

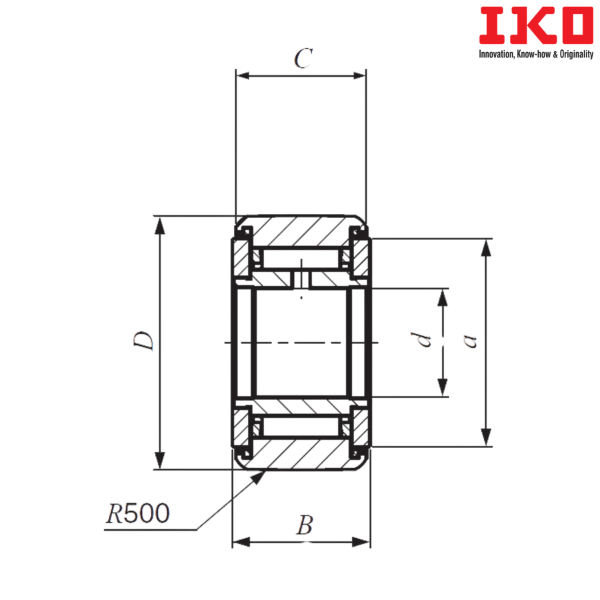

Bore Diameter (d) mm - 6
Outer Diameter (D) mm - 19
Width (B) mm - 12
Boundary dimension (C) mm - 11
Boundary dimension (a) mm - 14
Basic Dynamic Load Rating (C) N - 3400
Basic Static Load Rating (C0) N - 3790
Maximum allowable static load (N) - 3790
Shield Type Bearing - NART 6 FR
Weight (kg) - 0.019
Suffix Description :
F - Stainless Steel
R - With Crowned Outer Ring
U - Rubber Seals at Each Side
** Images are for representation purposes only
