Description
Brand - IKO
Item Number - NART 50 VR IKO
Also Known As - NART50VR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Full Complement)

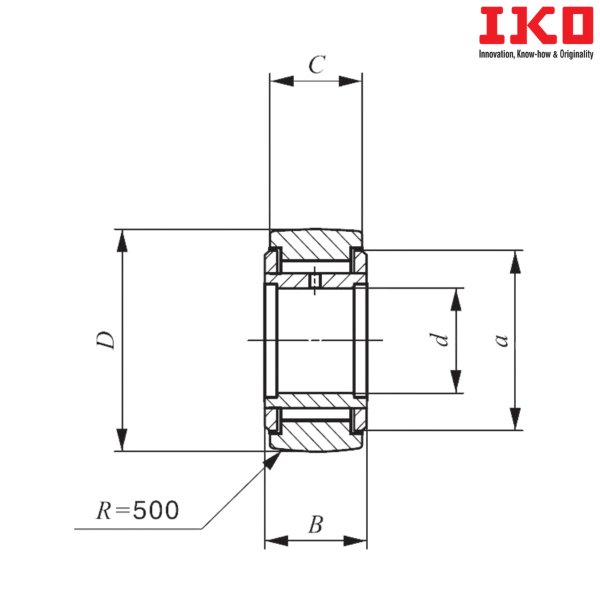

Shaft Diameter (mm) - 50
Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (B) mm - 32
Boundary dimension (C) mm - 30
Boundary dimension (a) mm - 76
Basic Dynamic Load Rating (C) N - 84300
Basic Static Load Rating (C0) N - 198000
Maximum allowable static load (N) - 198000
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 50 VUUR
Weight (kg) - 1.01
Suffix Description :
R - With Crowned Outer Ring
V - With Full Complement of Rolling Elements
** Images are for representation purposes only
