Description
Brand - IKO
Item Number - NART 50 R IKO
Also Known As - NART50R
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Cage)
Shaft Diameter (mm) - 50

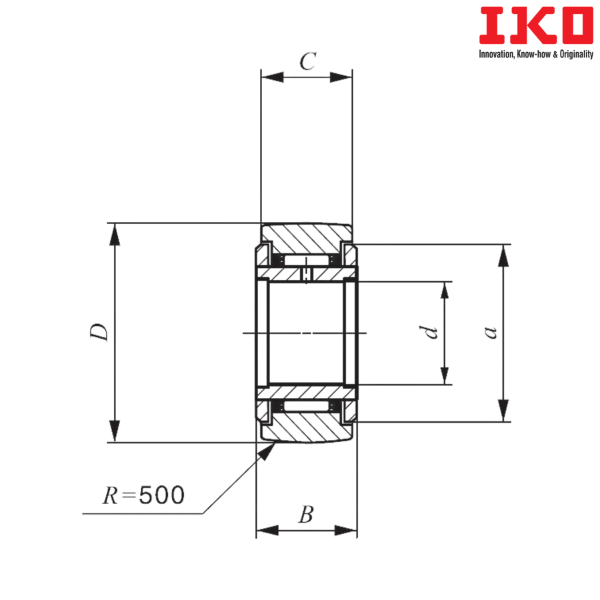

Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (B) mm - 32
Boundary dimension (C) mm - 30
Boundary dimension (a) mm - 76
Basic Dynamic Load Rating (C) N - 48600
Basic Static Load Rating (C0) N - 95600
Maximum allowable static load (N) - 95600
Sealed Type Bearing with Crowned Outer Ring (With Cage) - NART 50 UUR
Weight (kg) - 0.98
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
