Description
Brand - IKO
Item Number - NART 5 VR IKO
Also Known As - NART5VR
Category - Non-Separable Roller Followers (High Carbon Steel Made)
Type - Shield Type (Crowned Outer Ring with Full Complement)
Shaft Diameter (mm) - 5
Bore Diameter (d) mm - 5
Outer Diameter (D) mm - 16
Width (B) mm - 12
Boundary dimension (C) mm - 11
Boundary dimension (a) mm - 12
Basic Dynamic Load Rating (C) N - 6810
Basic Static Load Rating (C0) N - 8370
Maximum allowable static load (N) - 7310
Shield Type Bearing with Crowned Outer Ring (Full Complement) - NART 5 VUUR
Weight (kg) - 0.0151
Suffix Description :
R - With Crowned Outer Ring
V - With Full Complement of Rolling Elements

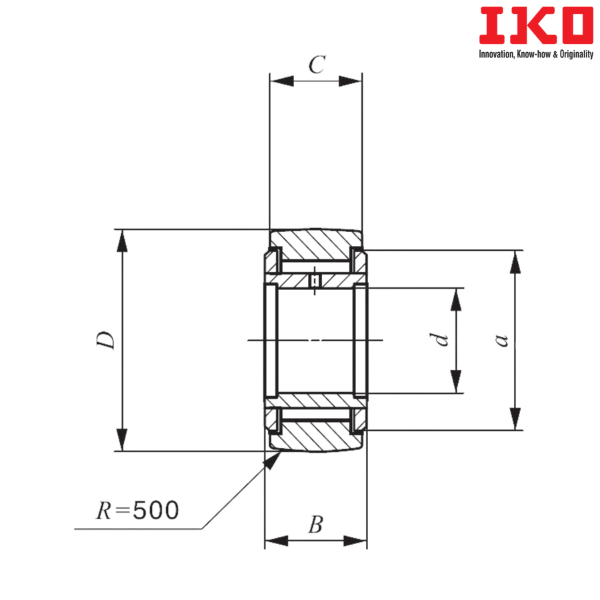

** Images are for representation purposes only
